Volkswagen Workshop Service and Repair Manuals

Refrigerant: Description and Operation

Refrigerant Circuit

=> [ Evaporator Housing Assembly Overview ]

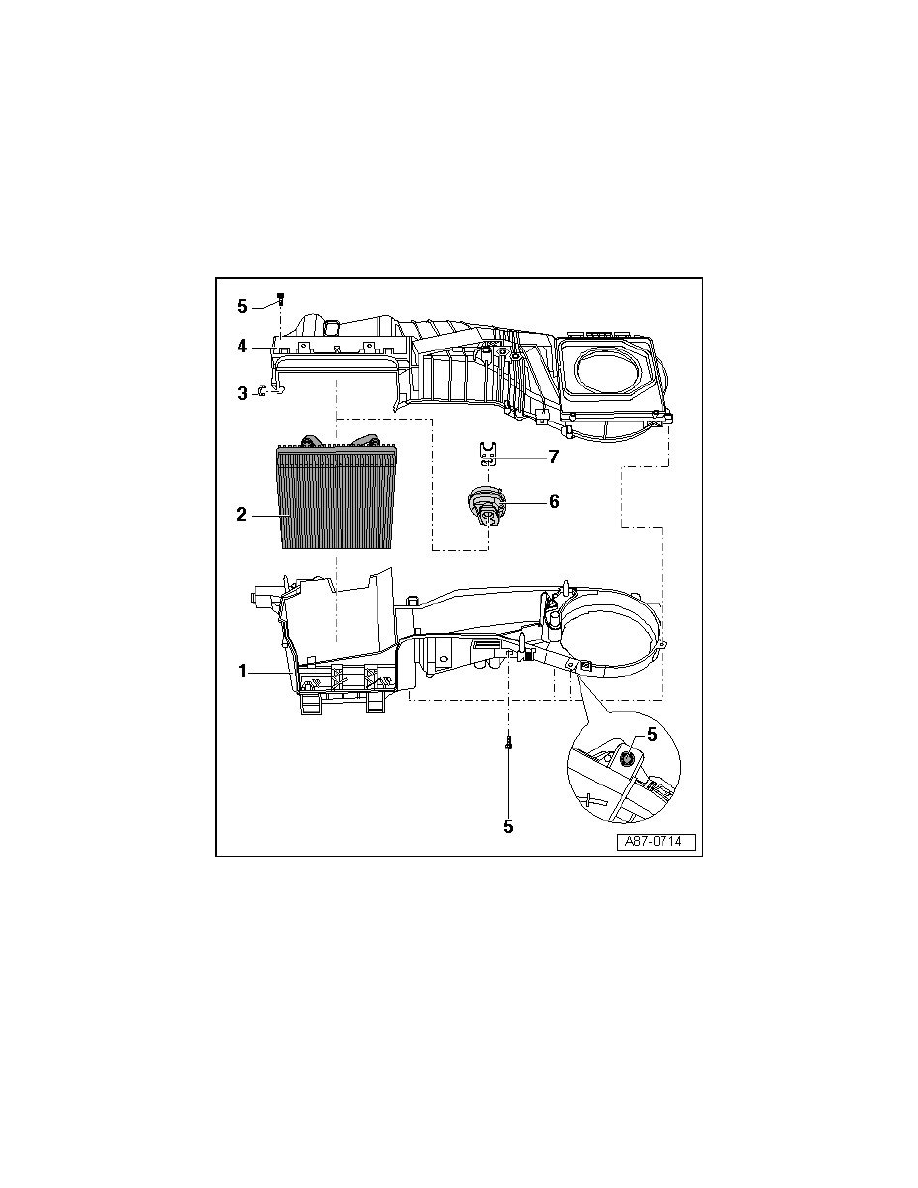

Evaporator Housing Assembly Overview

-

Remove the heating and A/C unit. Refer to => [ Heating and A/C Unit ] See: Heating and Air Conditioning/Service and Repair/Removal and
Replacement/Refrigerant Circuit Specialized Repairs.

-

Disconnect the air distribution housing/evaporator housing from the heating and A/C unit. Refer to => [ Air Distribution Housing ] See: Heating
and Air Conditioning/Service and Repair/Removal and Replacement/Refrigerant Circuit Specialized Repairs.

1

Evaporator Housing Lower Section

‹› Disassembling and assembling, refer to => [ Evaporator Housing ] See: Heating and Air Conditioning/Housing Assembly HVAC/Service and

Repair/Evaporator Housing.

2

Evaporator

‹› Check insulation, it must be completely present.

‹› Removing and installing, refer to => [ Evaporator ] See: Heating and Air Conditioning/Service and Repair/Removal and

Replacement/Refrigerant Circuit Specialized Repairs.

3

Clip

4

Evaporator Housing Upper Section
