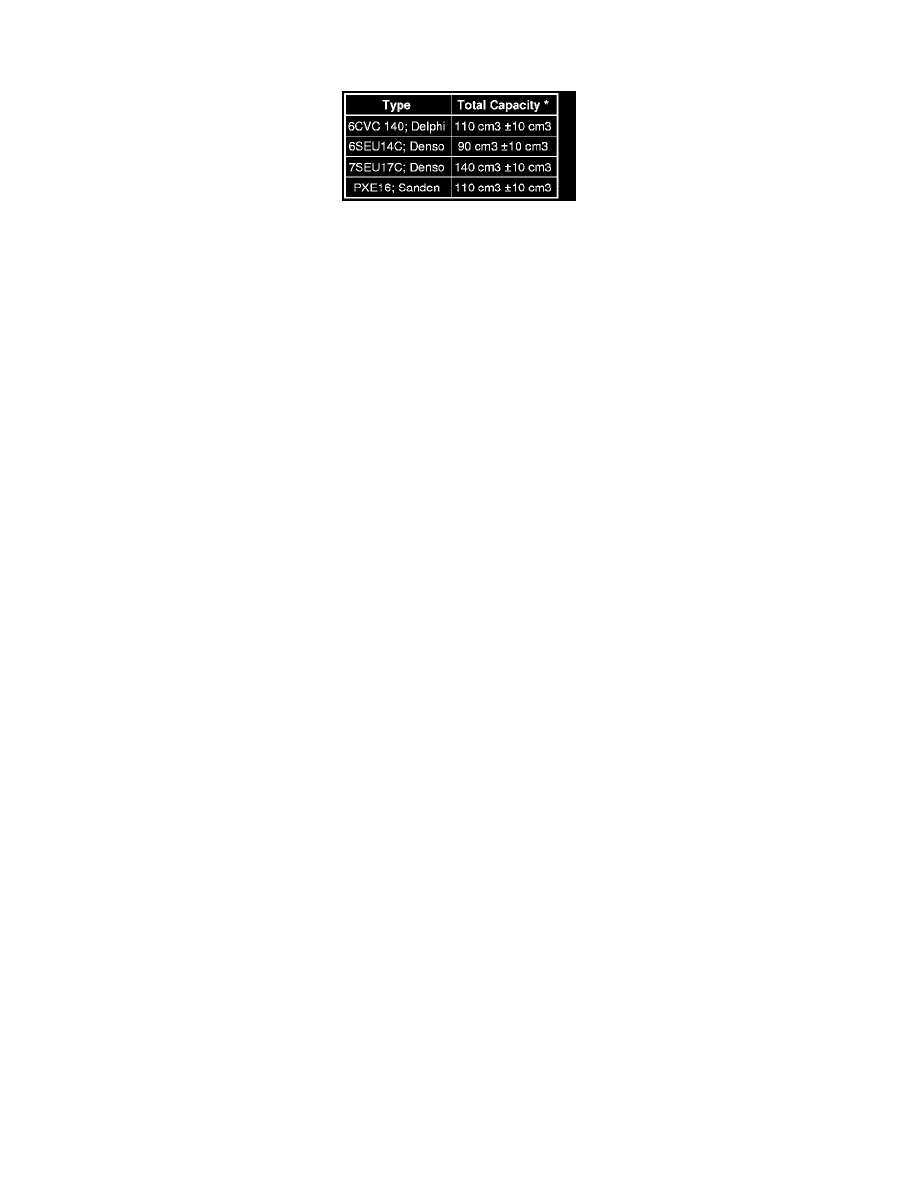

Refrigerant Oil: Capacity Specifications

Refrigerant Oil

The oil, which is located in the sump of the A/C compressor before initially switching on the air conditioner system, is distributed through the
refrigerant circuit as follows:

A/C compressor approximately 50 %

Condenser approximately 10 %

Suction hose approximately 10 %

Evaporator approximately 20 %

Fluid reservoir approximately 10 %
