Flywheel: Service and Repair

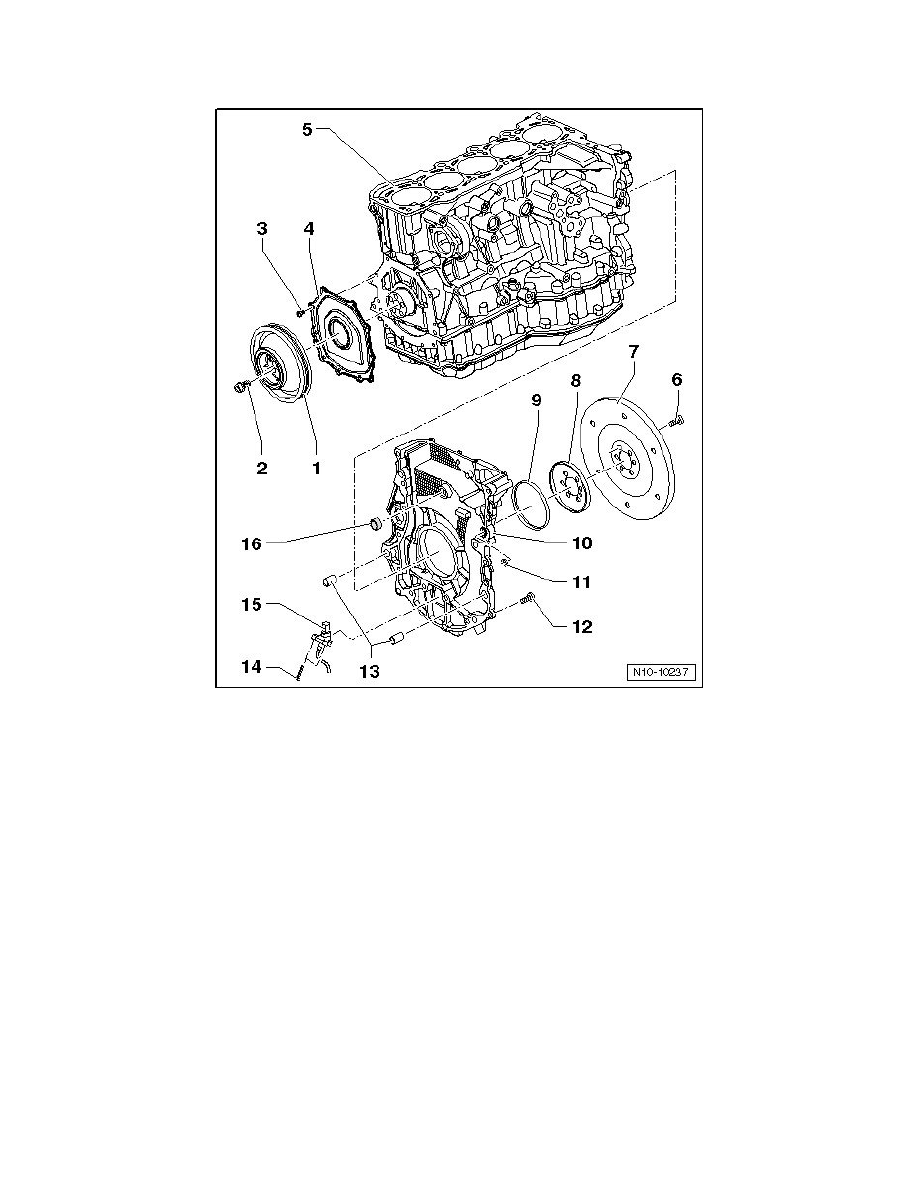

Sealing Flange and Drive Plate/Flywheel Assembly Overview

1

Crankshaft/Vibration Damper Pulley

‹› Multiple versions.

2

Bolt

‹› Replace

‹› 50 Nm + 90° (1/4) additional turn.

‹› Only use a strength category 10.9 bolt.

‹› Quantity: 5

3

Bolt

‹› 10 Nm

4

Sealing Flange

‹› With integrated seal.

‹› Removing and installing, refer to => [ Sealing Flange, Belt Pulley Side ] See: Engine, Cooling and Exhaust/Engine/Cylinder Block

Assembly/Sealing Flange, Engine Front/Service and Repair.

5

Cylinder Block
