Golf (5K1) L5-2.5L (CBUA) (2011)
/l5-2.5l_(cbua)/Page-79001.png)
Alternator Pulley: Tools and Equipment

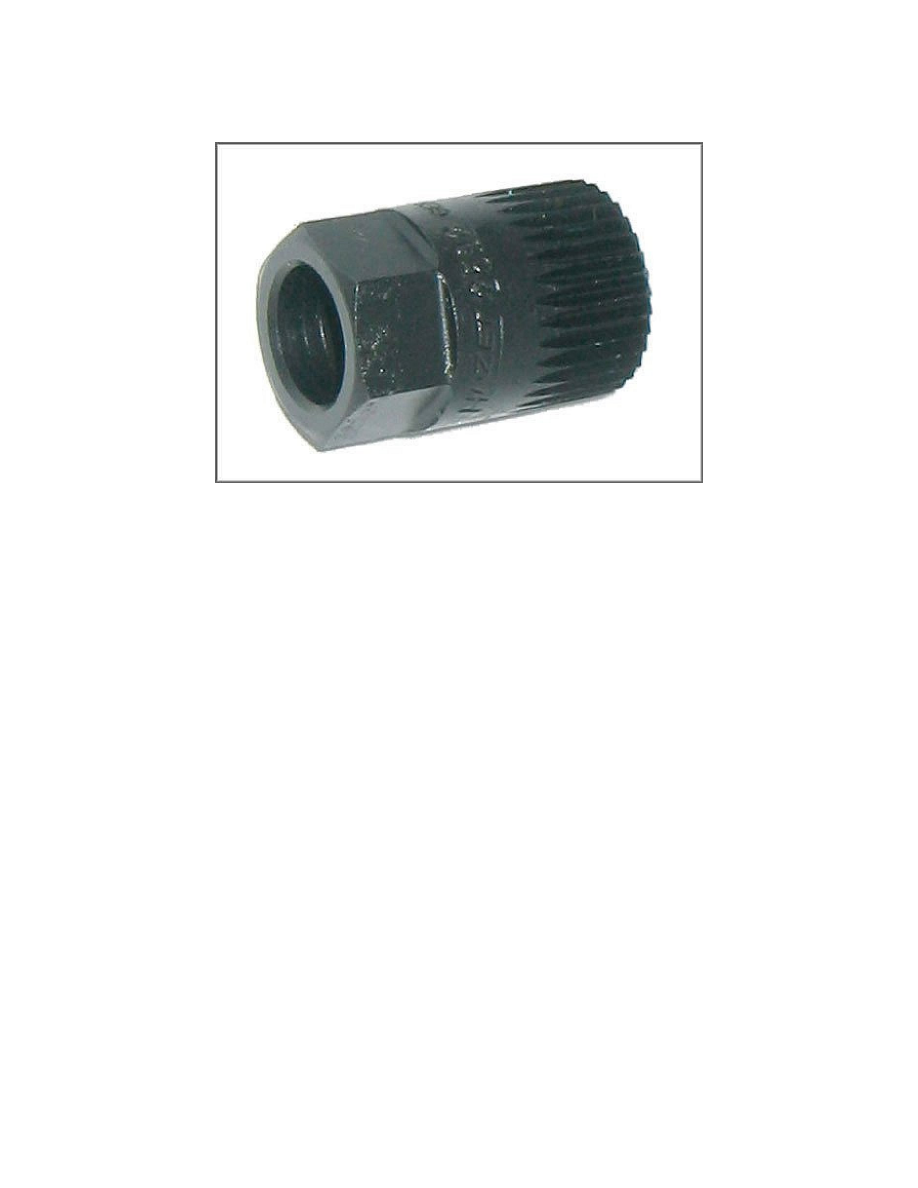

Multi-toothed Alternator Pulley Wrench
AST tool# H 2592
Used for the R and R of the free-wheel pulley on the alternator. This tool is comparable to VW factory tool# 3400 and Mercedes factory tool # 602 589
00 10 00. The H 2592 is used in conjunction with the S 3054 X-10 or the S 1054TX T-50 sockets.
Applicable to the following Mercedes Engines:
602.982, 611.981, 611.987, 612.965, 612.966, 612.981, 613.960, 628.962, 628.963, 642.992, 646.951, 646.961, 646.962, 646.963, 647.961 and
647.981
-
Applicable to VW
-
Comparable to VW Factory Tool # 3400
-
Comparable to Mercedes Factory Tool # 602 589 00 10 00
Contact AST for pricing.
Assenmacher Specialty Tools
1-800-525-2943
Additional Tools Possibly Required:
