Golf GL L4-2.0L (AZG) (2001)
/Page-142001.png)
Neutral Start Relay: Locations

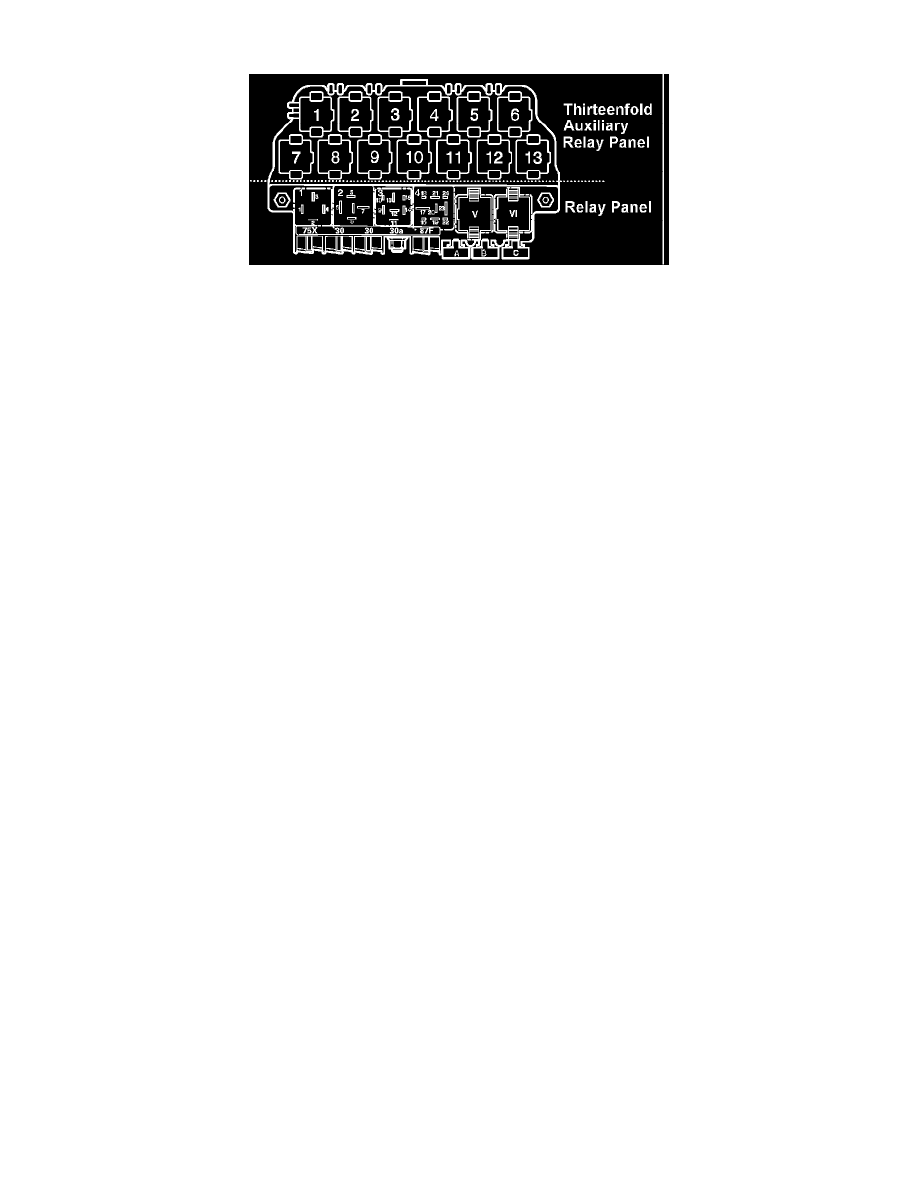

Relay Panel & Thirteenfold Auxiliary Relay Panel
Above panel break
1
-
Auxiliary Emergency Flasher Relay (404)
2
-
Relay for motor remote unlock rear lid (79)
3
-
Starting Interlock Relay (53)/(465)
4
-
Fog Light Relay (53)
5
-
Control module for multi-function steering wheel (450)
6
-
Control module for multi-function steering wheel (450)
7
-
Daytime Running Lights Change-over Relay (173)
9
-
Dual Horn Auxiliary Relay (53)
10
-
Glow plug relay (180)
10
-
Warning Lamp Auxiliary Relay (200)
11
-
Park/Neutral Position (PNP) Relay (175)
12
-
Power Supply (Terminal 30, B+) Relay (109)
Below panel break
1
-
Dual Horn Relay (53)
2
-
Load Reduction Relay (18)/(100)
4
-
Fuel Pump (FP) Relay (409)
V -
Wiper/Washer Intermittent Relay (377)/(389)/(192)
VI -
Wiper/Washer Intermittent Relay (377)/(389)/(192)
NOTE Number in parentheses ( ) indicates production control number stamped on relay housing.
