Golf GL L4-2.0L (AZG) (2001)
/Page-162001.png)
Hood Sensor/Switch (For Alarm): Locations

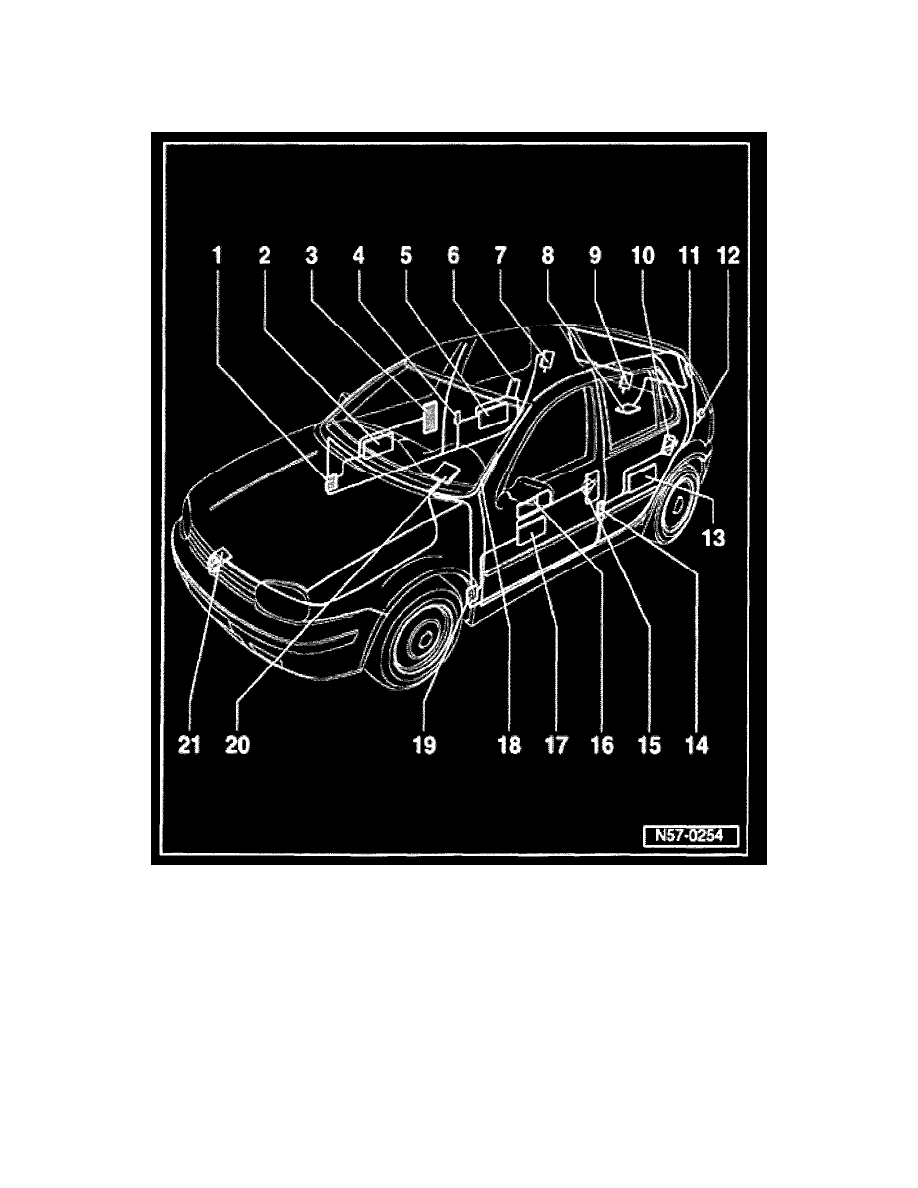

Comfort System and Central Locking System, Assembly Overview
Comfort System and Central Locking System, Assembly Overview
1
-
Coupling station
-
Installation position: Lower A-pillar, covered by trim in footwell
-
Remove A-pillar lower trim to remove
2
-
Door control module, FR
-
For comfort system only
-
Integrated into window motor
-
Removing:
-
Remove door trim
-
Remove window motor.
3
-
Door lock, FR
-
Door lock is secured to assembly carrier
-
Electric central locking is integrated into door lock module
-
Removing:
-
Remove door trim.
-
Remove door lock.
