Golf III L4-1984cc 2.0L SOHC (1993)
Diagnostic Connector - ABS: Locations
Vehicles thru 07.93
-

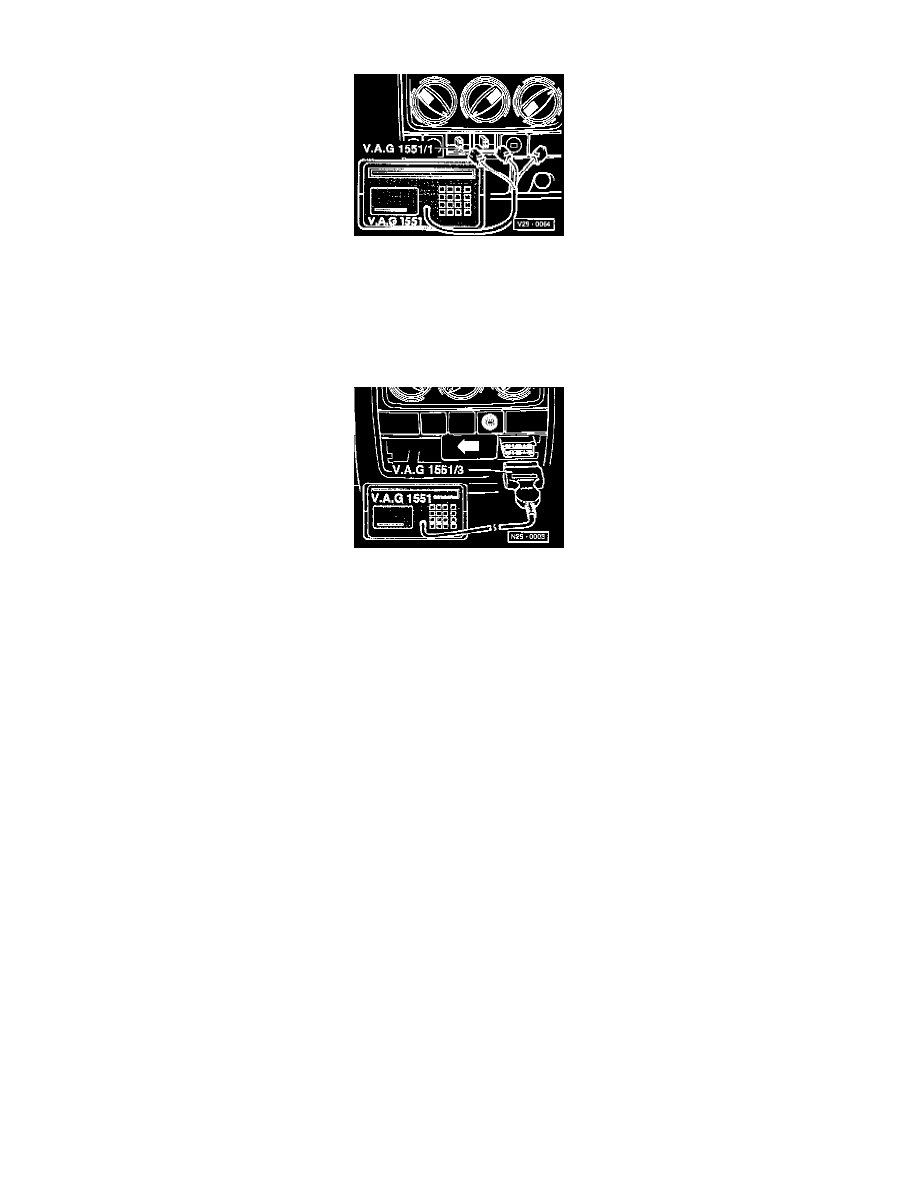

Unclip covers for Data Link Connectors (DLC) below the heating/ventilation controls.
-
Connect VAG 1551 scan tool with adapter cable VAG 1551/1 as follows:
-
First connect black plug for scan tool voltage supply to black DLC.
-
Connect white connector to white DLC.
-
The blue connector is not required.
Vehicles from 08.93
-
Remove ashtray and slide cover for Data Link Connector (DLC) to left (arrow).
-
With ignition switched off, connect VAG 1551 scan tool with adapter cable VAG 1551/3.
