Golf III L4-1984cc 2.0L SOHC (1993)
Parking Brake Cable: Technical Service Bulletins
Parking Brake Cables - Revised
Group: 46
Number: 93-O4
Date: May 15, 1993
Subject:
Parking brake cables, revised
Model(s):
Golf/GTI/Jetta CANADA only from 1993 m.y.

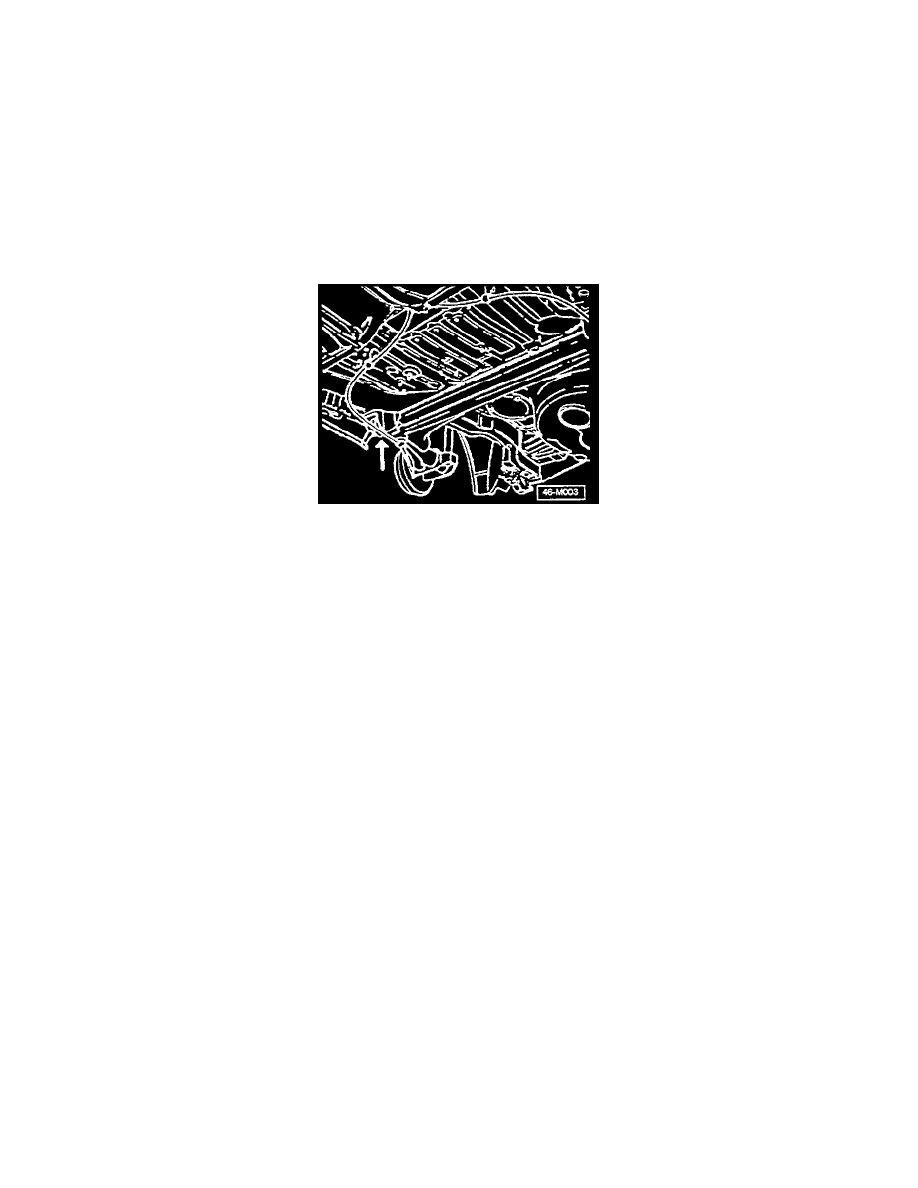

From March 1993 production all vehicles have parking brake cables with rubber spacers located in the area of the rear axle (arrow).
The rubber spacers prevent contact between the cable and the rear axle.
When replacing parking brake cables use the following part numbers:
^ Part No. 1HM 6O9 721 - for drum brakes
^ Part No. 1HM 6O9 721A - for disc brakes
CAUTION
Part numbers are for reference only. Always check with your Parts Dept. for the latest information.
