Drive Belt: Service and Repair

Ribbed belt, removing and installing

Notes:

- Before removing the ribbed belt, mark its running direction so that it can be reinstalled the same way.
- When installing, be sure belt is correctly seated in pulleys.

Removing

-

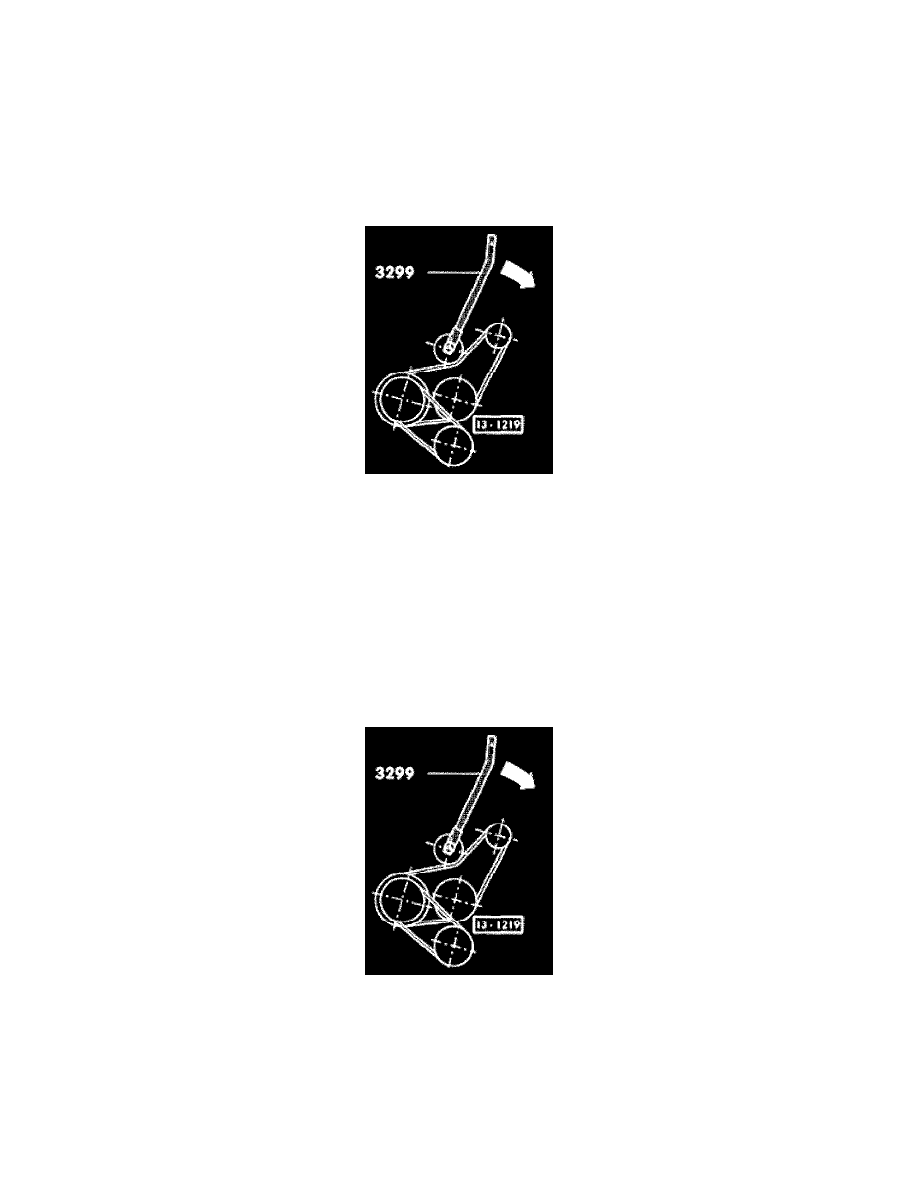

Lift belt tensioner with 3299 ribbed belt installation tool to relieve belt tension, and remove belt from generator pulley.

Note:

- Illustration shows belt drive for vehicles without A/C.

-

Remove V-belt for power steering pump.

-

Install ribbed belt on crankshaft vibration damper.

-

Install V-belt for power steering pump.

Installing

Ribbed belt drive without A/C.

-

Lift belt tensioner with 3299 ribbed belt installation tool and install ribbed belt.

Ribbed belt drive with A/C.
