GTI L4-2.0L Turbo (BPY) (2007)
Alternator Pulley: Service and Repair
External Starting Point
Generator Ribbed Belt Pulley, Removing And Installing
Ribbed belt pulley without freewheel, removing and installing

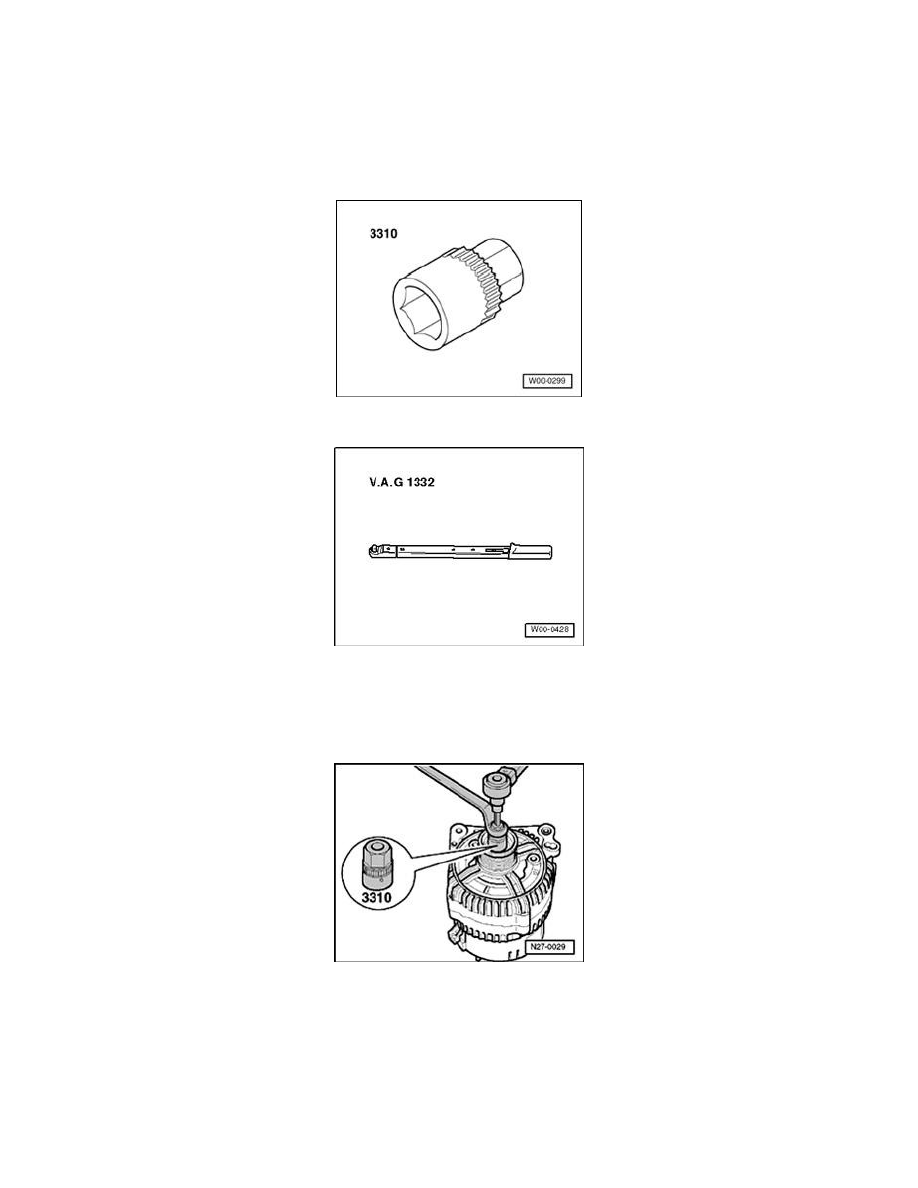

Special tools, testers and auxiliary items required
-
Socket VAS 3310
-
Torque wrench VAG 1332 (or equivalent 40 - 200 Nm)
Removing:
-
Remove generator as applicable.
-
Tighten the generator in a vise at the attachment points.
-
Use socket insert VAS 3310 to remove nut of overrunning clutch pulley from generator shaft.
Installing:
Install in reverse order of removal, noting the following:
-
Tighten all fasteners according to values in table.
Ribbed belt pulley with freewheel, removing and installing - Mfr: Bosch
Special tools, testers and auxiliary items required
