GTI L4-2.0L Turbo (BPY) (2007)
/Page-1761001.png)
Rear Knuckle Alignment Link: Procedures

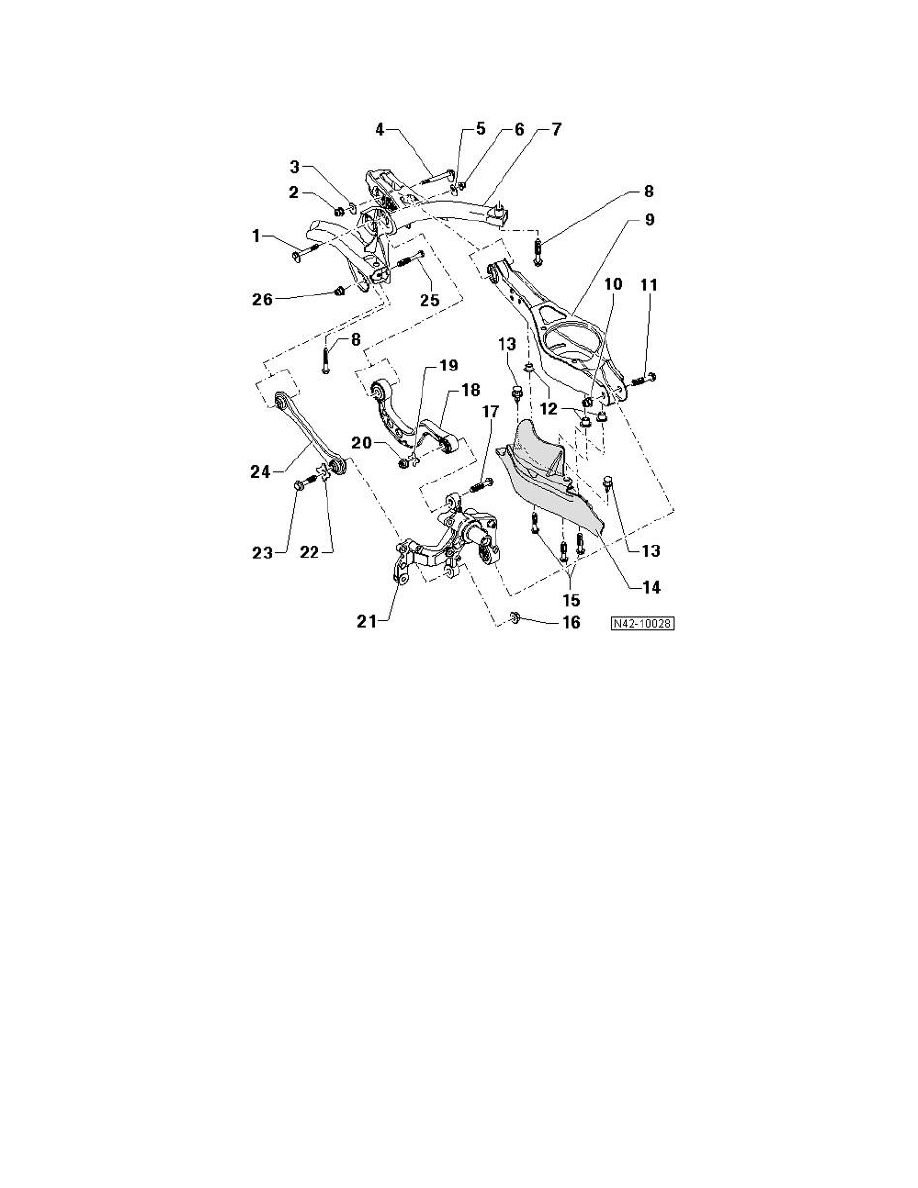

Subframe, transverse link, tie rod (Rabbit/GTI), assembly overview
1 -
Eccentric bolt
^
For camber adjustment
2 -
Nut
^
M12 x 1.5
^
95 Nm
^
Self-locking
^
Always replace after removal
^
Always tighten threaded connections in curb weight position:
3 -
Eccentric washer
^
Inner bore with tab
4 -
Eccentric bolt
^
For toe adjustment
5 -
Eccentric washer
^
Inner bore with tab
6 -
Nut
^
95 Nm
^
This tightening torque does only apply in conjunction with Insert Tool 18 T1 0179
^
M12 x 1.5
^
Self-locking
^
Always replace after removal
^
Always tighten threaded connections in curb weight position:
7 -
Subframe
8 -
Bolt
^
M12 x 1.5 x 90
^
90 Nm plus an additional 90°
^
Always replace after removal
9 -
Lower transverse link
10 -
Nut
^
M12 x 1.5 x 75
