Jetta L4-1.9L DSL Turbo (BEW) (2004)
/Page-543004.png)
^

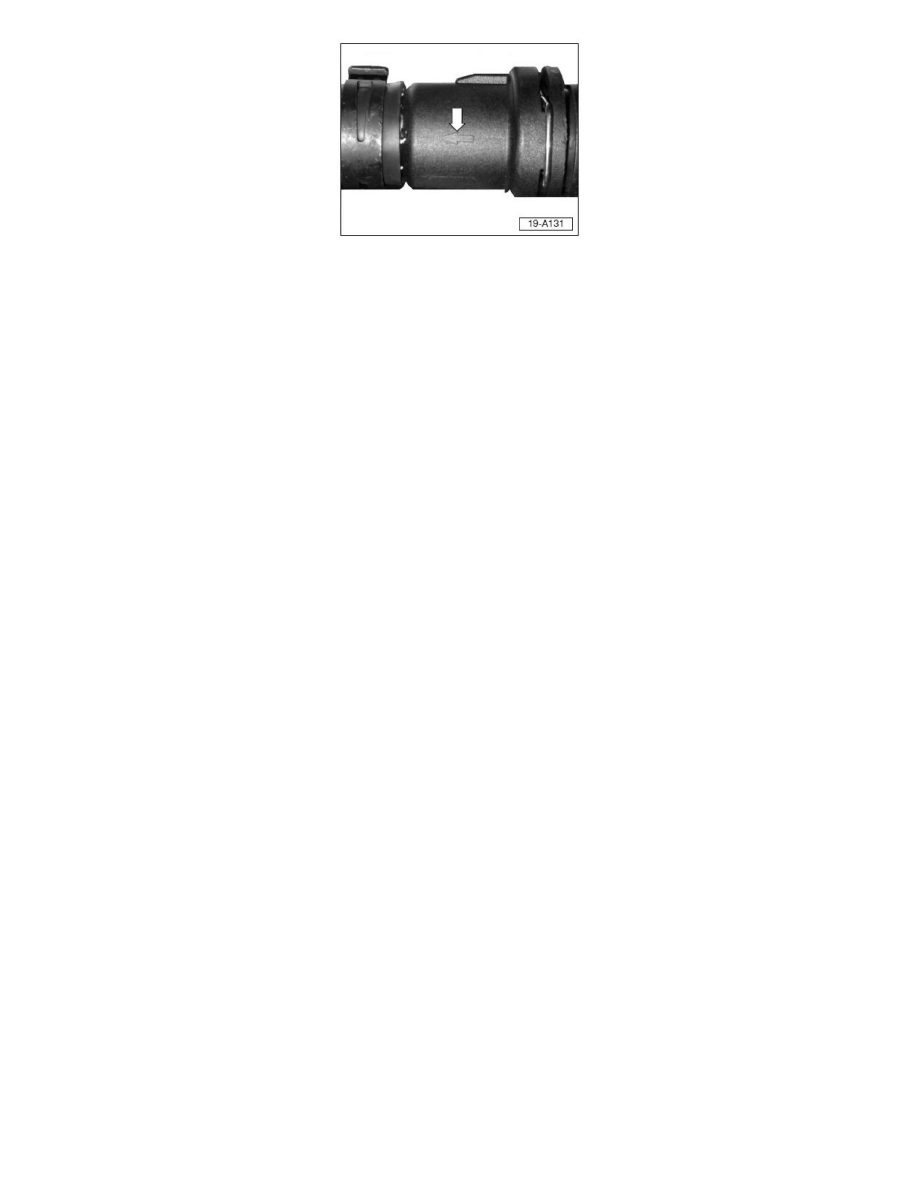

Observe directional arrow located on thermostat of Part No. 1J0
122 058 K. The arrow must point away from transmission cooler
^
Install hose clamps to new coolant hose.
^
Install hose onto transmission cooler and coolant pipe.
^
Install coolant hose clamp at transmission cooler using VAS 5024 spring clip pliers.
^
Raise and support the vehicle, see Repair Manual Group 00.
^
Install coolant hose clamp at coolant pipe using VAS 5024 spring clip pliers.
Tip:
When installing coolant hoses, route hoses stress-free so that they do not come into contact with other components (observe markings on coolant
connection and hose).
^
Lower vehicle.
^
Remove coolant hose pinch off clamps.
^
Top up cooling system using appropriate coolant mixture, see Repair Manual group 19, Cooling System, Filling.
^
Start vehicle, allow to warm, turn engine off.
^
Top up cooling system using appropriate coolant mixture, see Repair Manual group 19, Cooling System, Filling.
Procedure-Manual Transmission
Tip:
The following "Update - Programming" (flashing) process may overwrite any "TUNED" ECM programming. A "TUNED" ECM is described as any
ECM altered so as to perform outside the normal parameters and specifications approved by Volkswagen of America, Inc.
If you encounter a vehicle with a "Tuned" ECM, prior to performing the "Update - Programming" (flashing) procedure:
^
Your Dealership should place vehicle owner on notice in writing, that their ECM was found to have been tuned, and that any damage caused by the
tuning of the ECM (including any adverse emissions consequences) will not be covered by Volkswagen of America, Inc. warranties.
