Jetta L4-1.9L DSL Turbo (BEW) (2004)

Page 1
background image

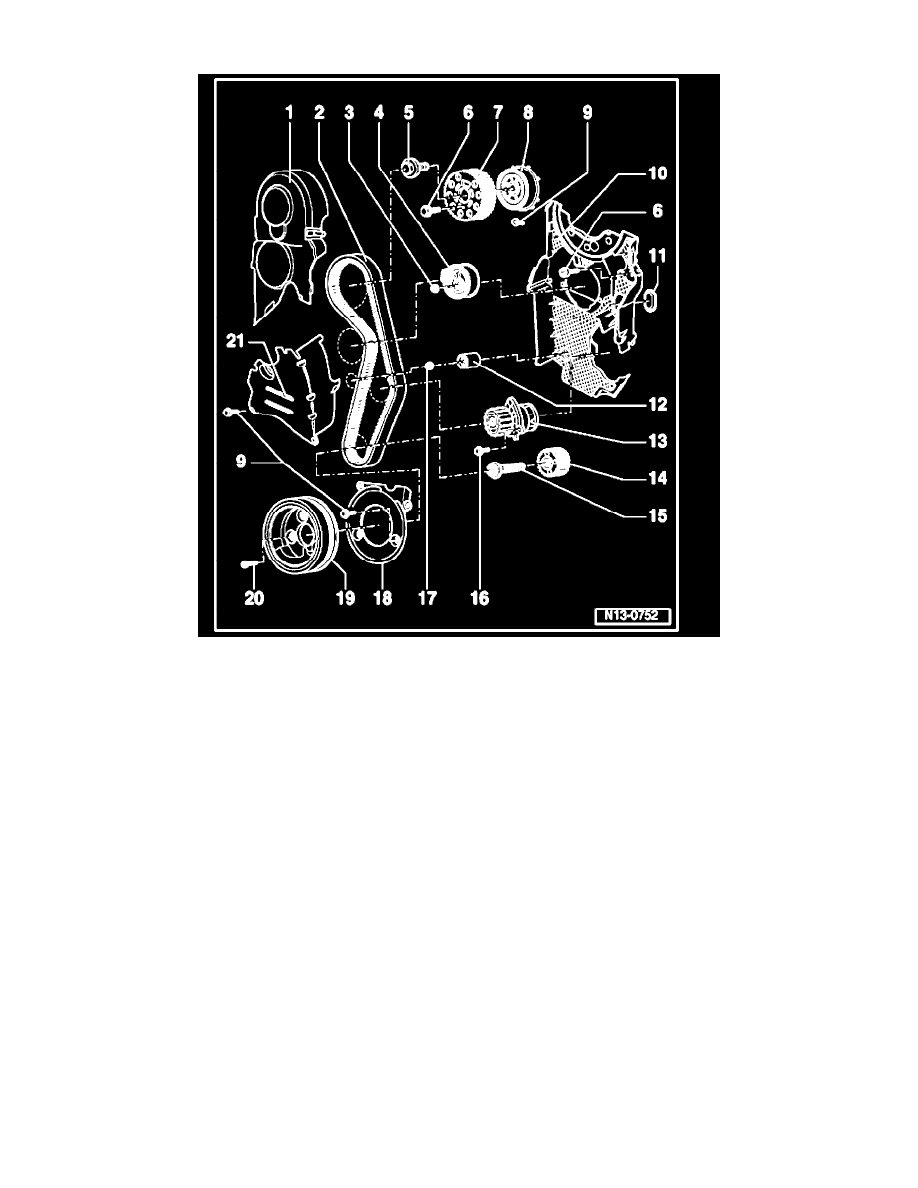

Harmonic Balancer - Crankshaft Pulley: Specifications

19. Belt pulley/vibration damper

^

Can only be installed in one position. Holes are off-set.

20. 10 Nm + 1/4 turn (90°) further
