Jetta L4-1.9L DSL Turbo (BEW) (2004)
-

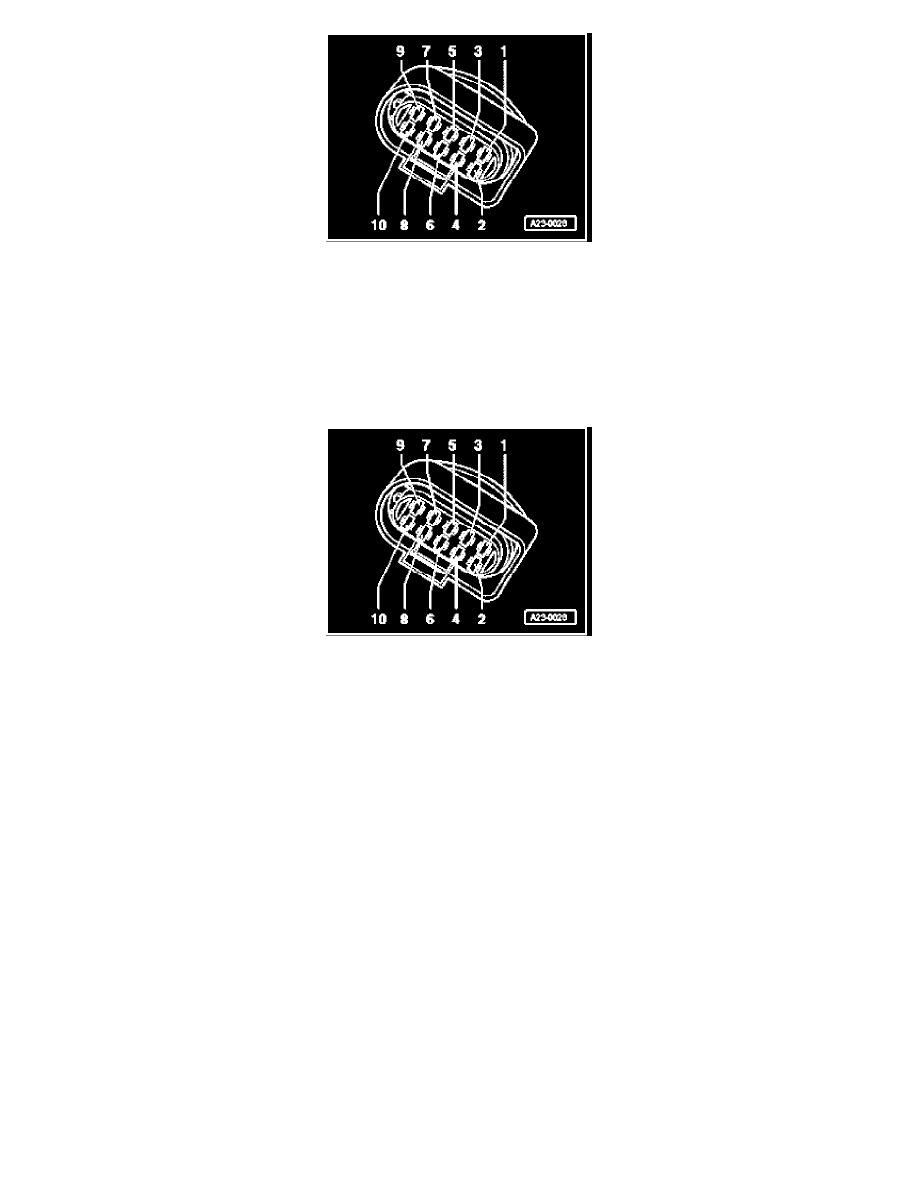

Check for open circuit in wires between test box and connector according to wiring diagram.
Terminal 5 + socket 2
Terminal 5 + socket 28
Terminal 6 + socket 59
Terminal 6 + socket 66
Terminal 6 + socket 80
Wire resistance: max. 1.5 Ohm
Vehicles with 121-pin control module
-
Check for open circuit in wires between test box and connector according to wiring diagram.
Terminal 5 + socket 1 and 2
Terminal 6 + socket 121 and 116
Wire resistance: max. 1.5 Ohm
Continuation for all vehicles
-
Also check wires for short circuit to each other, to vehicle Ground (GND) and to B+.
Specified value: Infinite Ohm
If no malfunctions are detected in wires:
-
Replace Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248-
-
Generate readiness code. See: Computers and Control Systems/Testing and Inspection/Monitors, Trips, Drive Cycles and Readiness Codes
