Jetta L4-1.9L DSL Turbo (BEW) (2004)
Clockspring Assembly / Spiral Cable: Service and Repair
Airbag Spiral Spring/Return Spring With Slip Ring -F138-, Removing and Installing
Airbag Spiral Spring/return Spring With Slip Ring -F138-, Removing And Installing
NOTE:
-
When removing and installing Airbag spiral spring/return spring with slip ring -F138-, make sure that Airbag spiral spring/return spring is set in
center position.
-
A new return ring with slip ring is secured in centered position with a tie wrap.
Removing
-
Remove driver side airbag unit.
-
Three-spoke steering wheel.
-
Four-spoke steering wheel.
-
Put wheels in straight-ahead position.
-
Remove steering wheel.
-

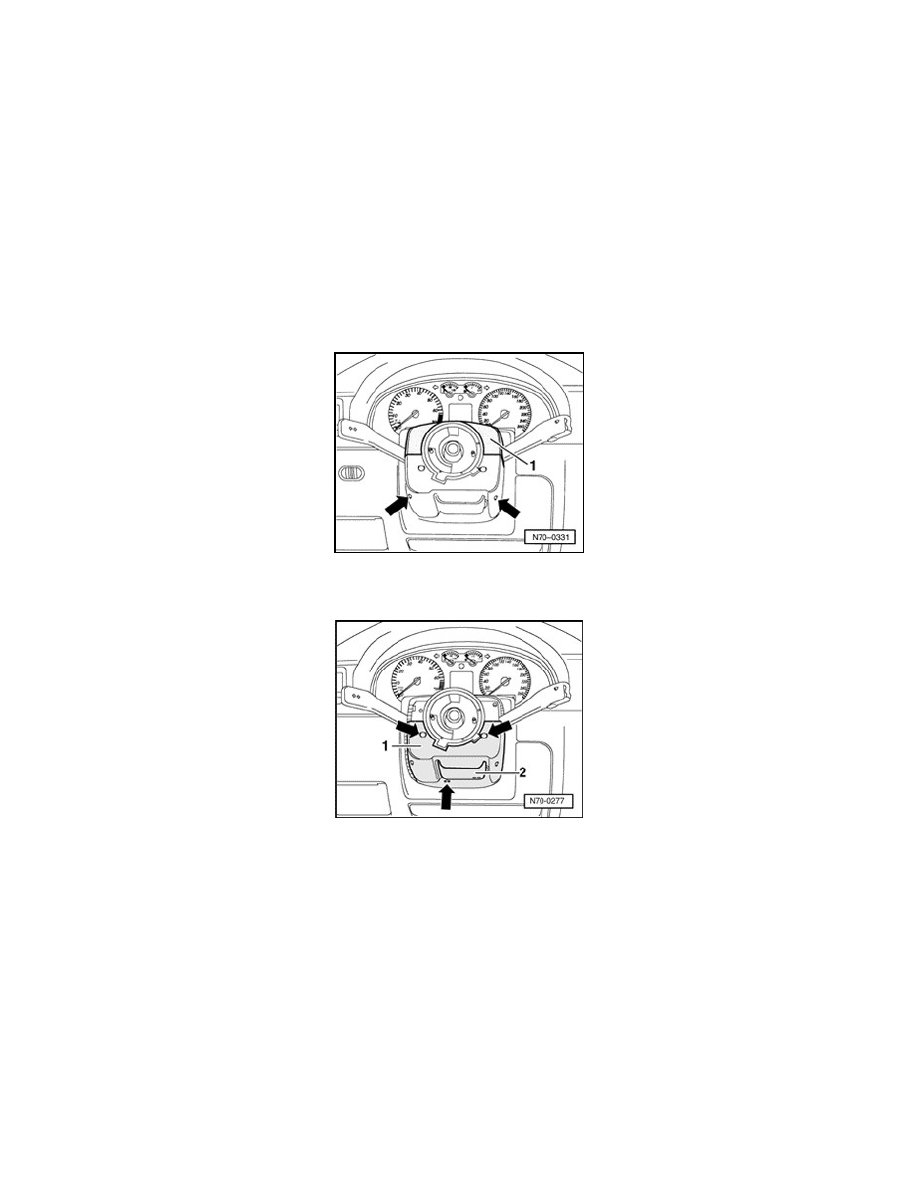

Remove bolts (Qty. 2) - arrows -.
-
Remove upper trim - 1 - for steering column switches.
-
Remove bolts (Qty. 3) - arrows -.
-
Loosen height adjustment - 2 - for steering wheel.
-
Remove lower trim for steering wheel switch - 1 -.
Vehicles with Electronic Stability Program (ESP):
In vehicles with ESP, return spring is a component of "Steering Angle Sensor -G85-"
Vehicles without ESP:
