Jetta L4-1.9L DSL Turbo (BEW) (2004)
/Page-1388009.png)

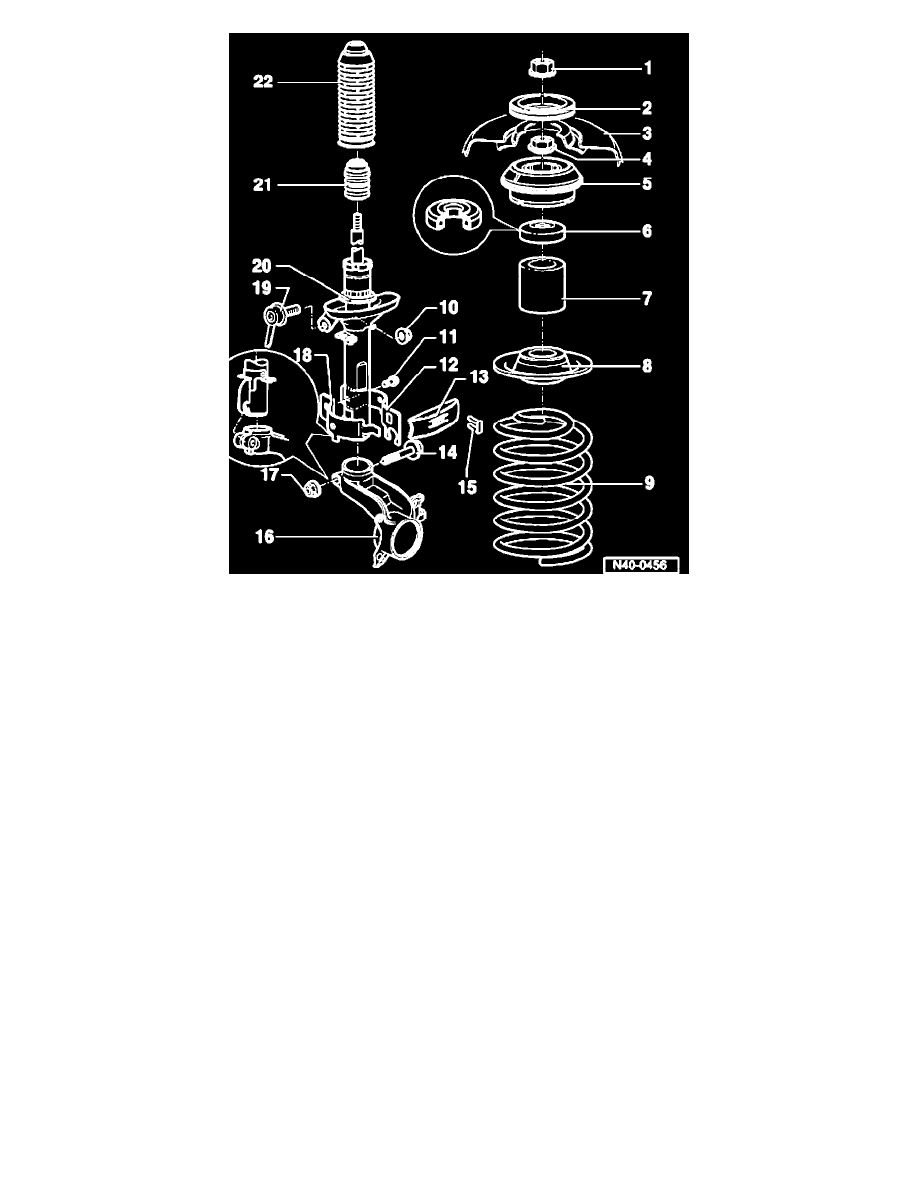

1. Self-locking hex nut, 60 Nm (44 ft. lbs.)
^
Always replace
2. Stop
3. Suspension strut turret
4. Hex nut, 60 Nm (44 ft. lbs.)
5. Strut mount
6. Axial ball bearing
7. Bushing
^
Only installed to vehicles with heavy duty suspension (PR No. 1GB)
^
This PR No. is entered on the vehicle data label in luggage compartment or service booklet
8. Spring plate
9. Coil spring
^
Observe color coding
^
Surface of the winding must not be damaged
^
Application to vehicle see Vehicle data plate; Refer to Vehicle data sticker
10. Self-locking nut
^
50 Nm (37 ft. lbs.) plus an additional 1/4 turn 90°
^
Always replace
11. Hex bolt, 10 Nm (7.4 ft. lbs.)
12. Bracket
13. Heat shield
14. Hex bolt
^
Always replace
^
The point on the hex bolt must point in normal direction of travel
15. Clip
16. Wheel bearing housing
17. Self-locking nut
^
60 Nm (44 ft. lbs.) plus an additional 1/4 turn 90°
^
Never less then 90° !
^
Turning angle tolerance 90 to 120°
^
Always replace
18. Clamp
19. Connecting Link
