Jetta L5-2.5L (BGP) (2006)

Page 1
background image

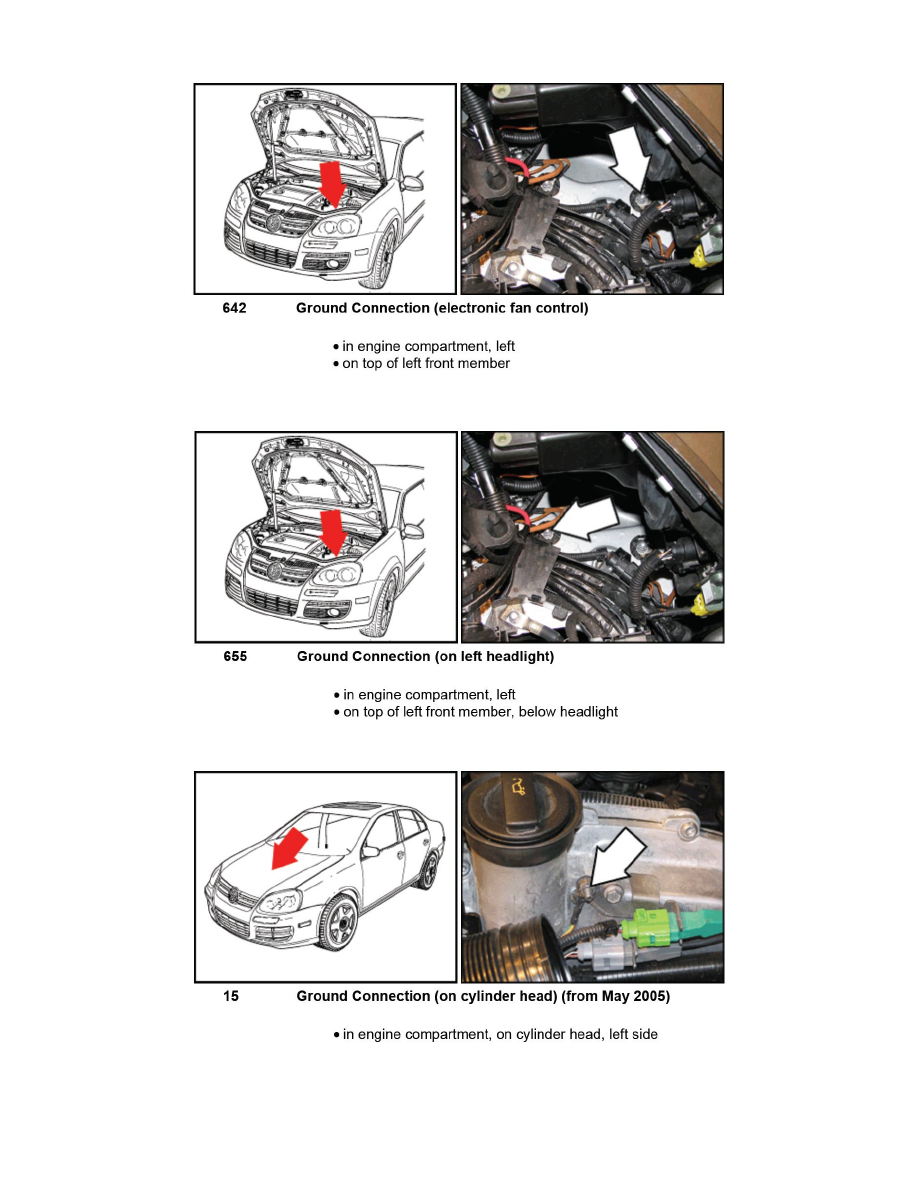

Grounding Point: Locations

Ground Connection (Electronic Fan Control) 642

Ground Connection (On Left Headlight) 655

Ground Connection (On Cylinder Head) 15
