Page 12
background image

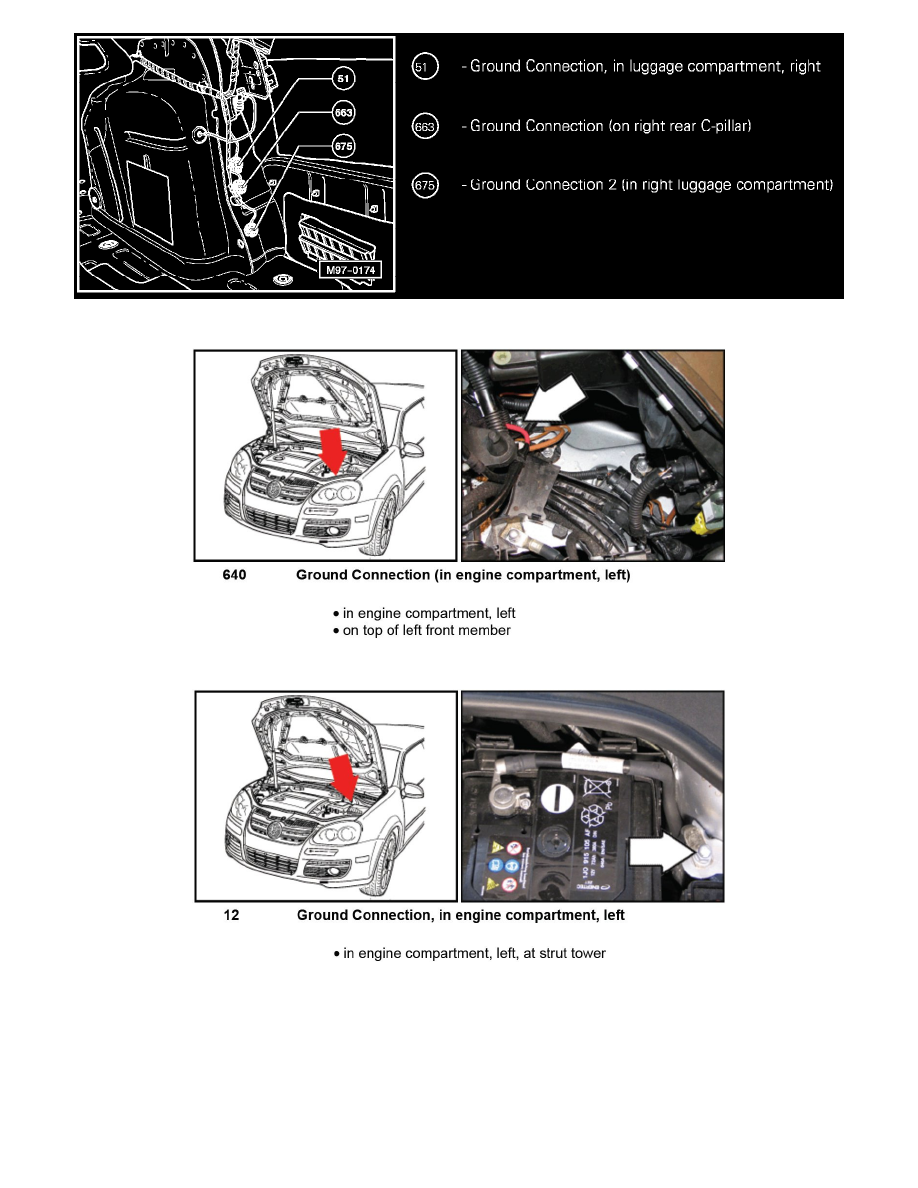

Ground Connection, In Luggage Compartment, Right 51, Ground Connection (On Right Rear C-Pillar) 663, Ground Connection 2 (In Right Luggage Compartment) 675

Ground Connection (In Engine Compartment, Left) 640

Ground Connection, In Engine Compartment, Left 12
