Jetta L5-2.5L (CBTA) (2008)
/Page-519001.png)
Air Filter Element: Service and Repair
Engine Cover With Air Filter
Engine Cover With Air Filter
Removing
-

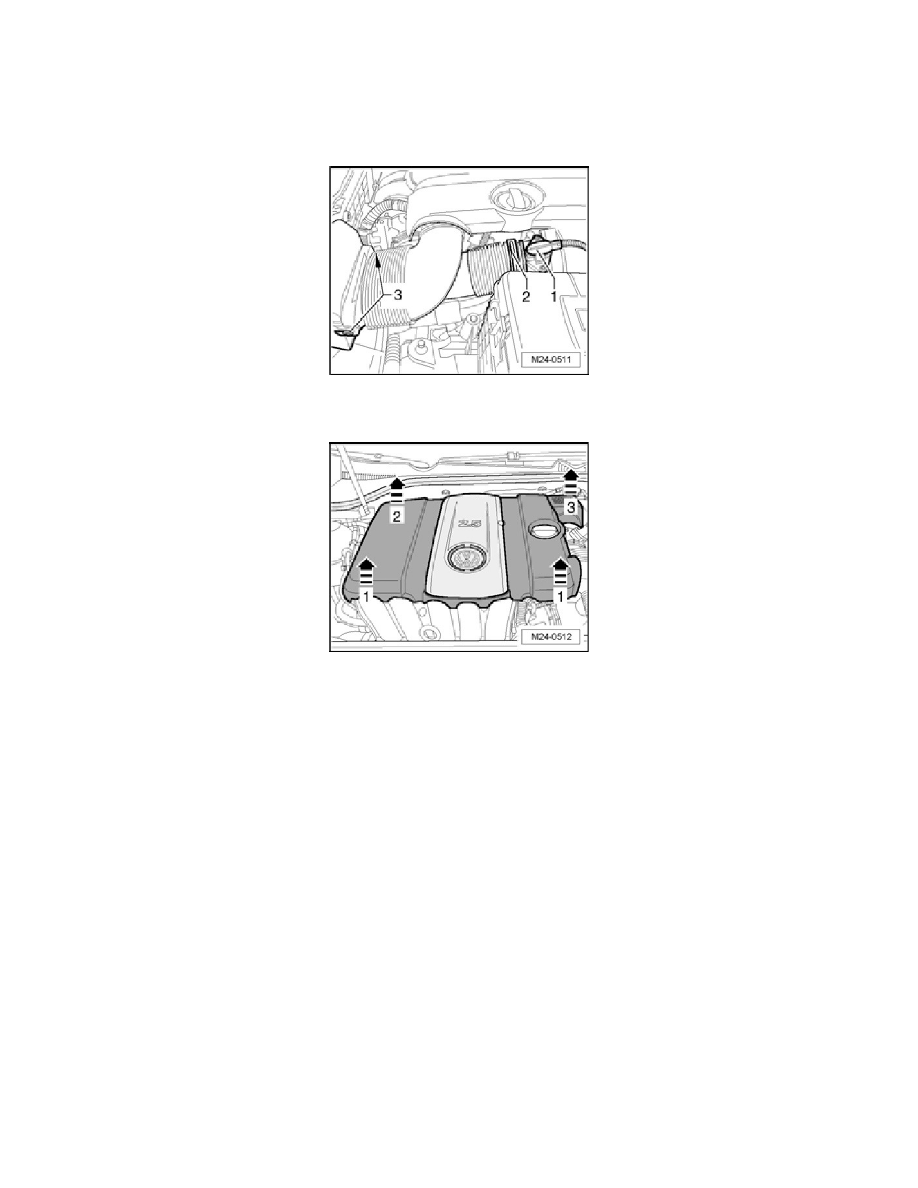

Disconnect connector - 1 - and intake hose - 2 -.
-
Remove screws - 3 - and disconnect intake hose.
-
Pull engine cover out of mount first at front - arrow 1 -, then at right rear - arrow 2 - and finally at left rear - arrow 3 -.
-
Carefully swivel engine cover out of rear area.
Installing
-
Position engine cover correctly in mounts and press in by hand.
The rest of installation follows the reverse of the removal procedures.
