Evaporator Case: Service and Repair

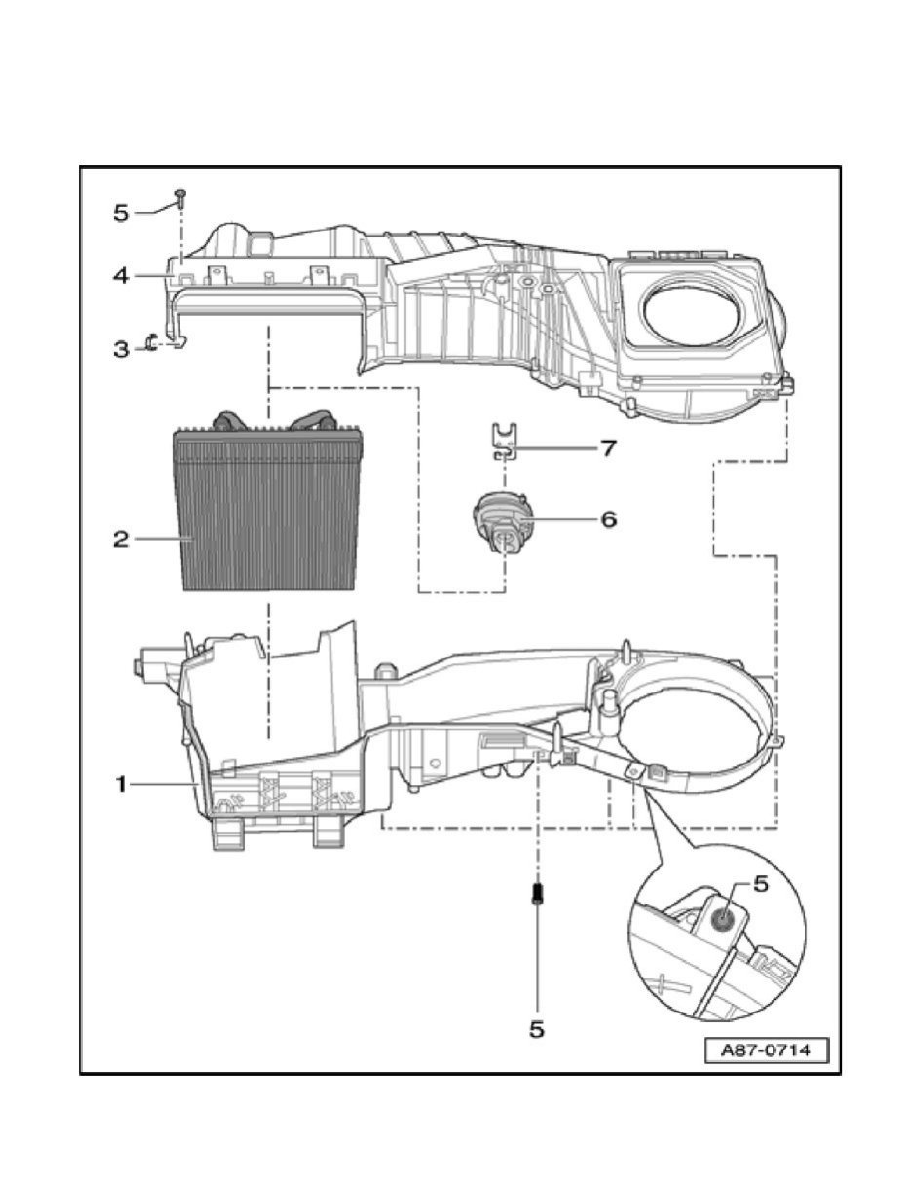

Evaporator Housing

-

Separate evaporator housing from heating and A/C unit.

-

Disconnect electrical connections from heating and A/C unit.

1

-

Evaporator housing - lower section

2

-

Evaporator
