Rear Lights In Side Panel, Unit With Bulbs, Assembly Overview|Page 8770 > < Rear Lights In Side Panel, Unit With Bulbs, Assembly Overview

Jetta L5-2.5L (CBTA) (2008)

Page 2
background image

3

-

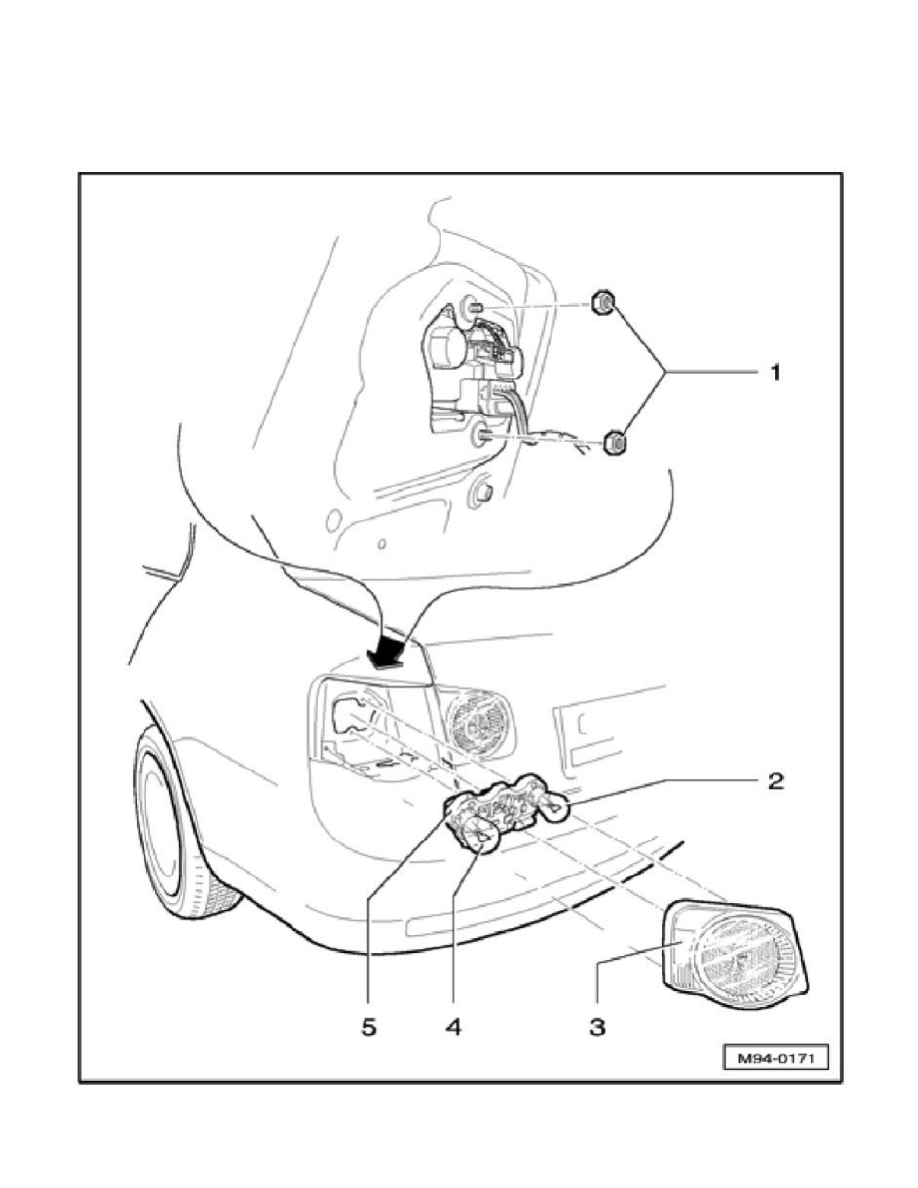

Rear Light assembly housing in side panel
-

Contains the Left LED Parking Lamp/DRL Module L176 Right LED Parking Lamp/DRL Module L177

4

-

Left Rear Turn Signal Lamp M6 Right Rear Turn Signal Lamp M8

5

-

Bulb holder

Rear Lights In Side Panel, Unit With Bulbs, Assembly Overview|Page 8770 > < Rear Lights In Side Panel, Unit With Bulbs, Assembly Overview
