Tail Lamp: Service and Repair
Taillamp Bulb Carrier In Side Panel, Sedan

Rear Lamps

Taillamp Bulb Carrier in Side Panel, Sedan

Removing

-

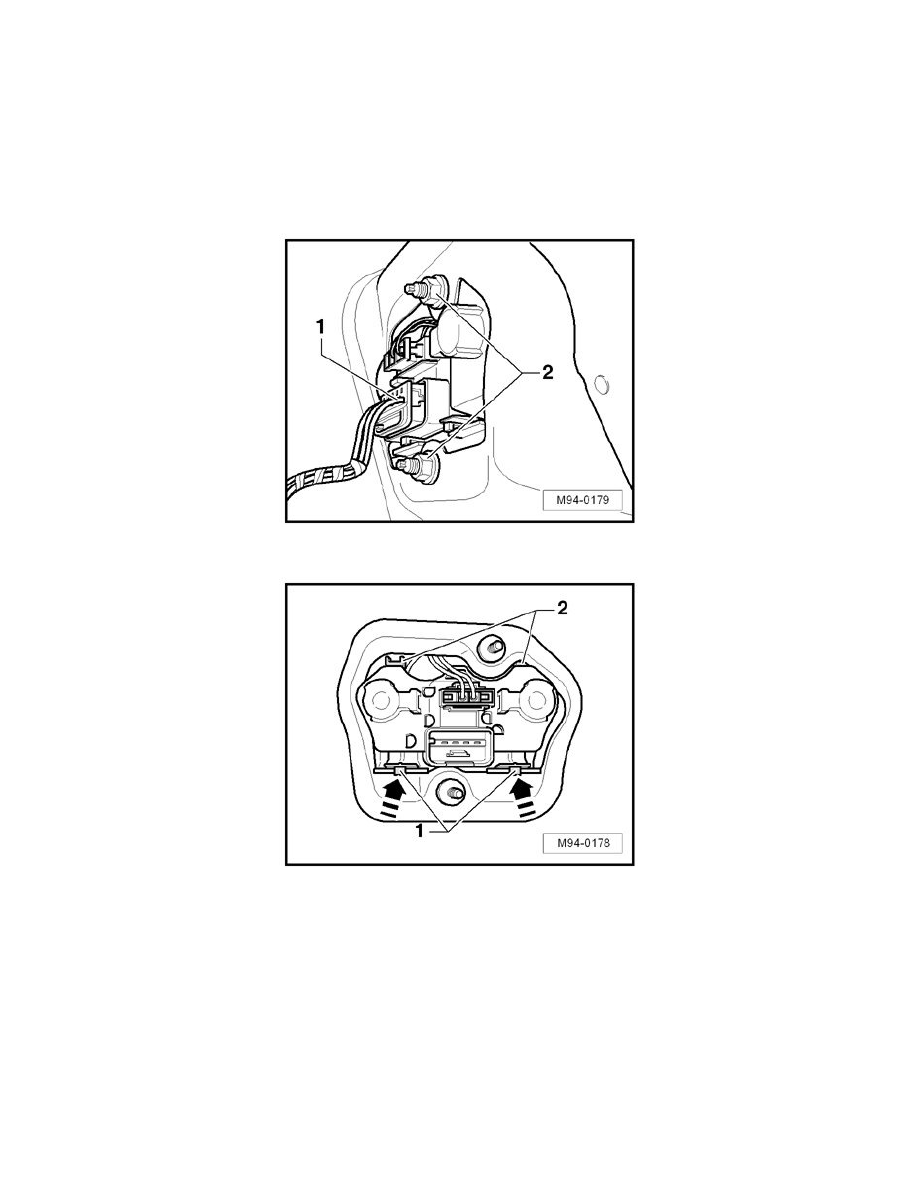

Disconnect connector - 1 -.

-

Release retaining straps - 1 - - in direction of arrow - and unhook lamp carrier from taillamp assembly housing -  2 -.

Installing

Install in reverse order of removal.
