Jetta L5-2.5L (CBTA) (2008)
/Page-334010.png)
‹› Socket (VAS 3310)
‹› Torque Wrench (V.A.G 1332) (or corresponding 40 - 200 Nm)
Removing
-
Remove the generator.
-
Clamp the generator at the mounting points in a vise.
-

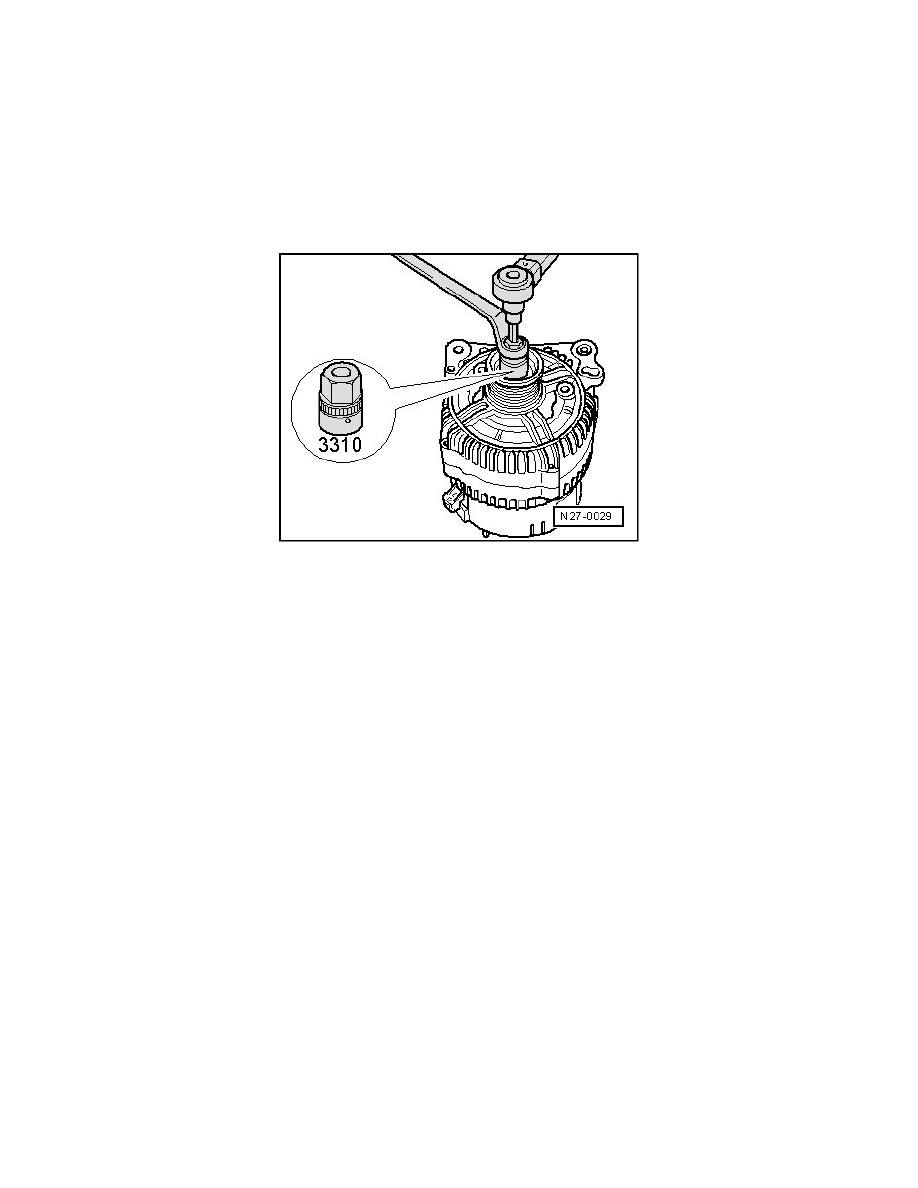

Use the (VAS 3310) to remove the ribbed belt pulley nut from the generator shaft.
Installing
Install in reverse order of removal, noting the following:
-
Tighten all fasteners to specified values. Refer to --> [ Generator Tightening Specifications ] See: Specifications/Mechanical
Specifications/Alternator/Generator Tightening Specifications.
Ribbed Belt, 2.5L Engine, Routing
Ribbed Belt, 2.5L Engine, Routing
Vehicles with A/C System
