Relay and Fuse Arrangements, From July 2007|Page 4781 > < Relay and Fuse Arrangements, From July 2007|Page 4779

Jetta L5-2.5L (CBTA) (2008)

Page 1
background image

Fuse: Application and ID

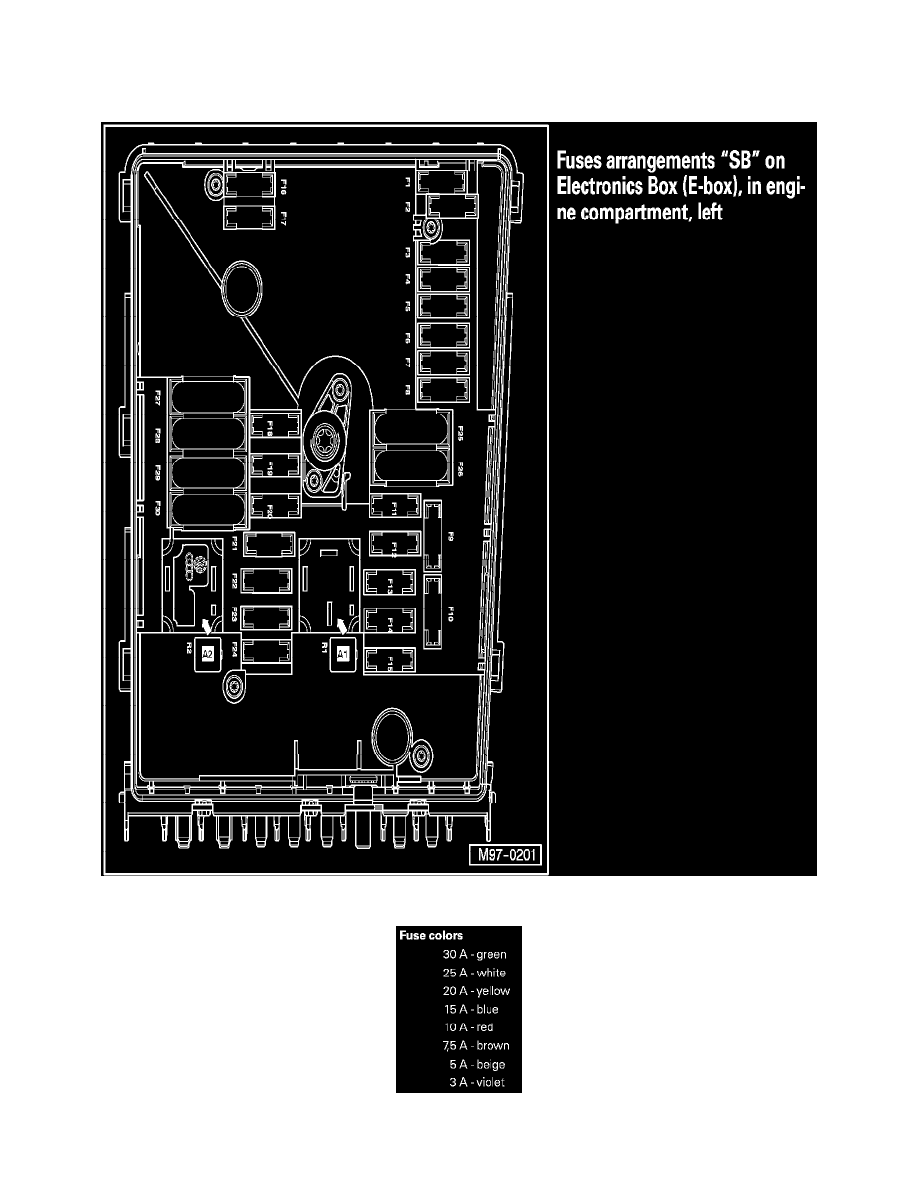

Fuses Arrangements "SB" on Electronics Box (E-Box), In Engine Compartment, Left, From July
2007

Fuses Arrangements "SB" On Electronics Box (E-Box), In Engine Compartment, Left

Fuse Colors
