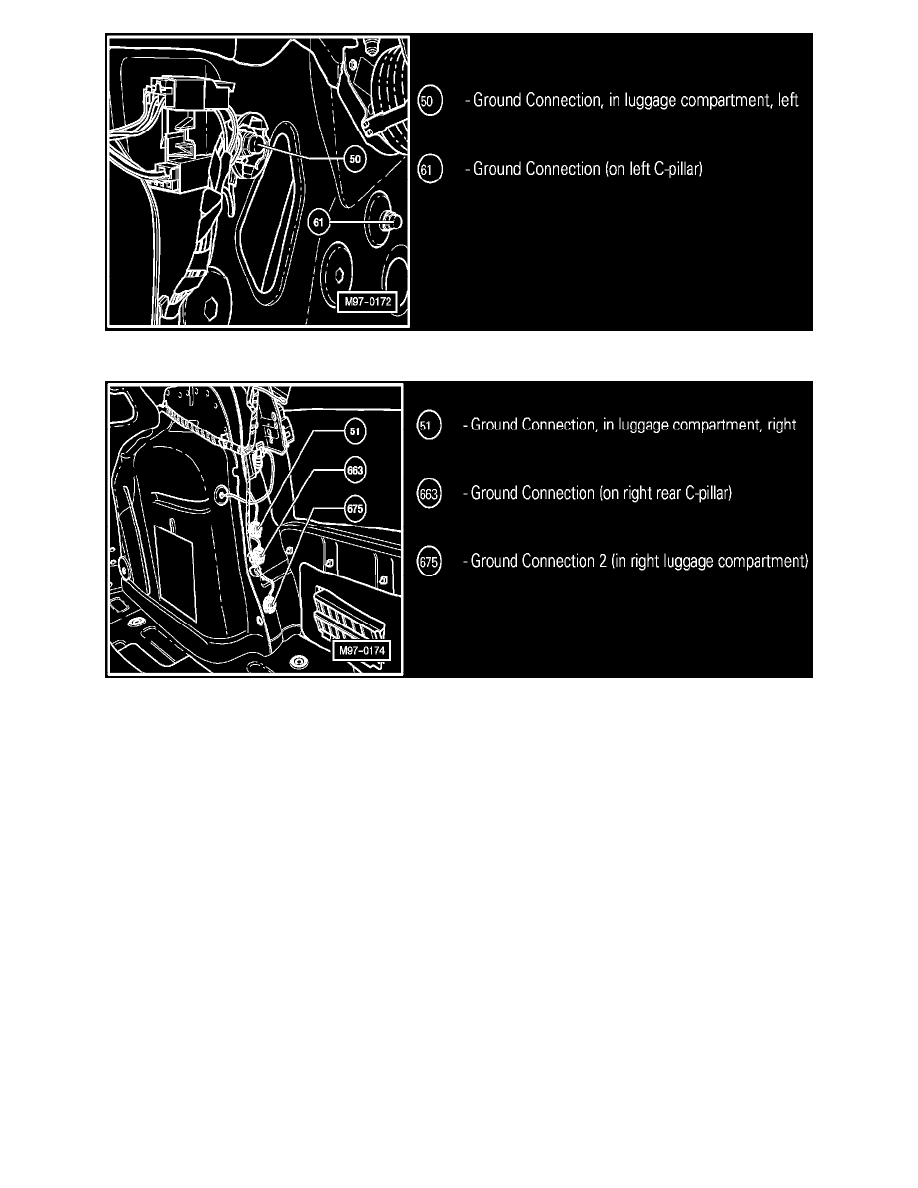

50 - Ground Connection, In Luggage Compartment, Left, 61 - Ground Connection (On Left C-pillar)

51 - Ground Connection, In Luggage Compartment, Right, 663 - Ground Connection (on Right Rear C-pillar,  Ground Connection 2 (In Right Luggage Compartment)
