Relay Carrier on Electrical System Control Module, Removing and Installing|Page 4973 > < Relay Carrier on Electrical System Control Module, Removing and Installing|Page 4971

Jetta L5-2.5L (CBTA) (2008)

Page 2
background image

-

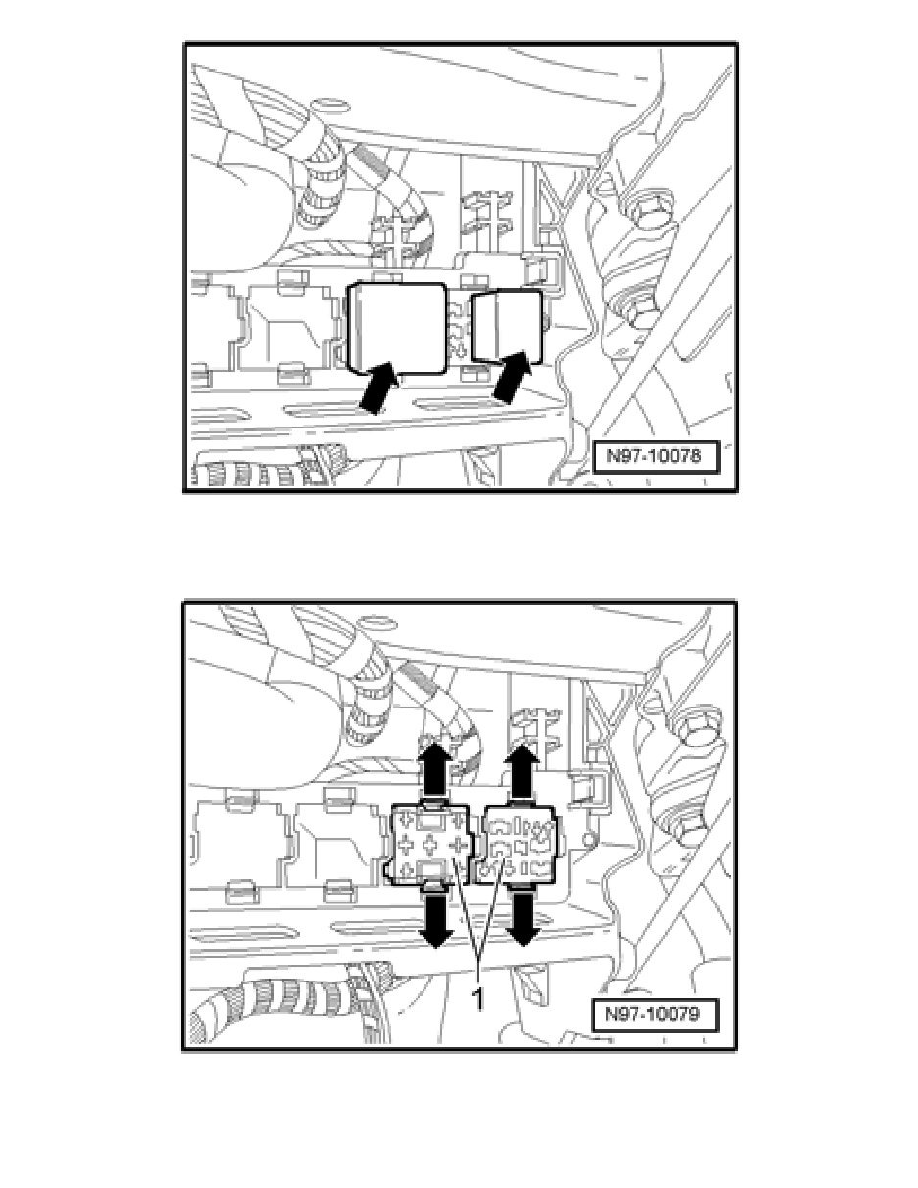

Remove relays - arrows - from relay carrier.

NOTE:  The number of relays is dependent on vehicle equipment.

-

Clip retaining tabs in the direction of the - arrow - outward and then press connectors -1 - through relay carrier.
