Engine Control Module: Diagrams

ECM Connector Installation Information

Engine Control Module Connector Installation Information

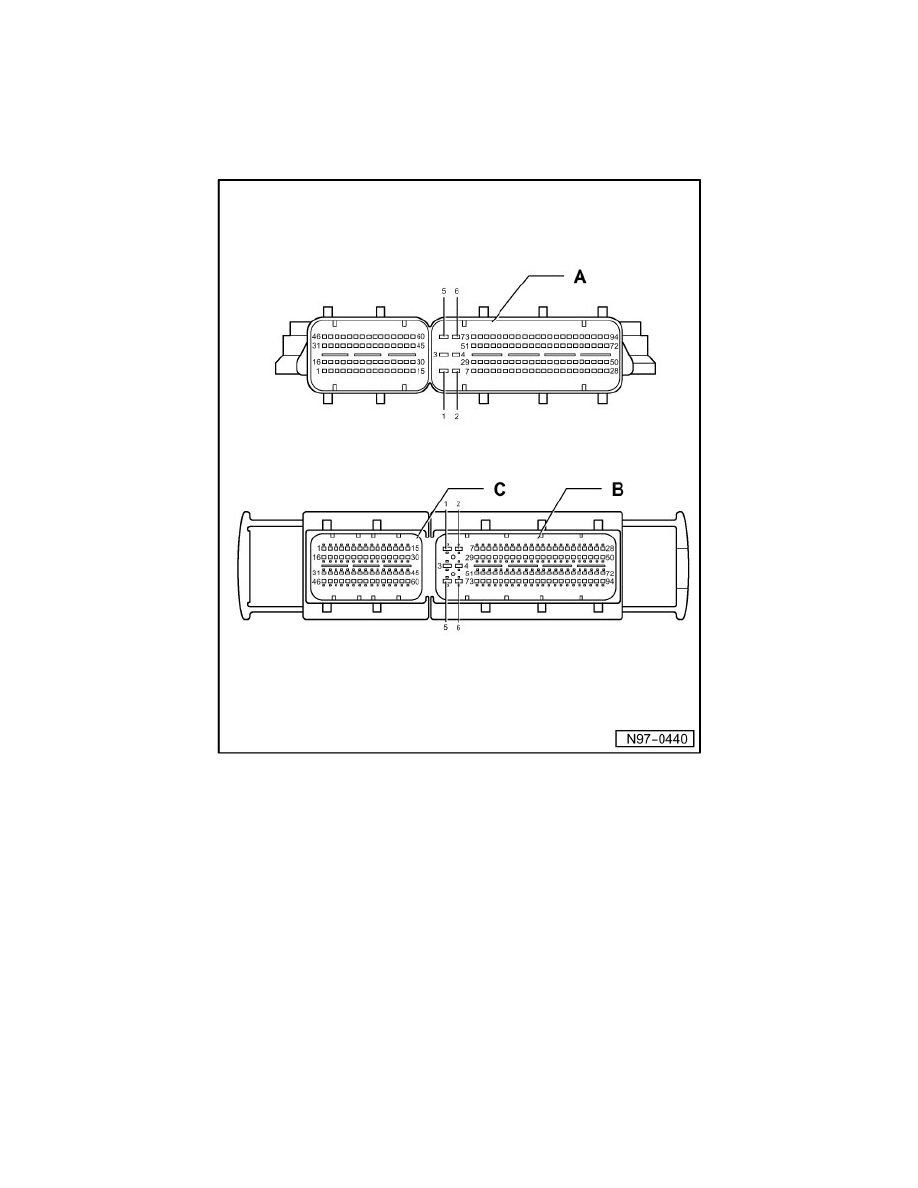

‹› The illustration shows the 154-pin connector.

A - Engine Control Module, 154-pin

 - Connector:

B - Connector, 94-pin

C - Connector, 60-pin
