Jetta L5-2.5L (CBTA) (2008)
Fuel Filter: Service and Repair

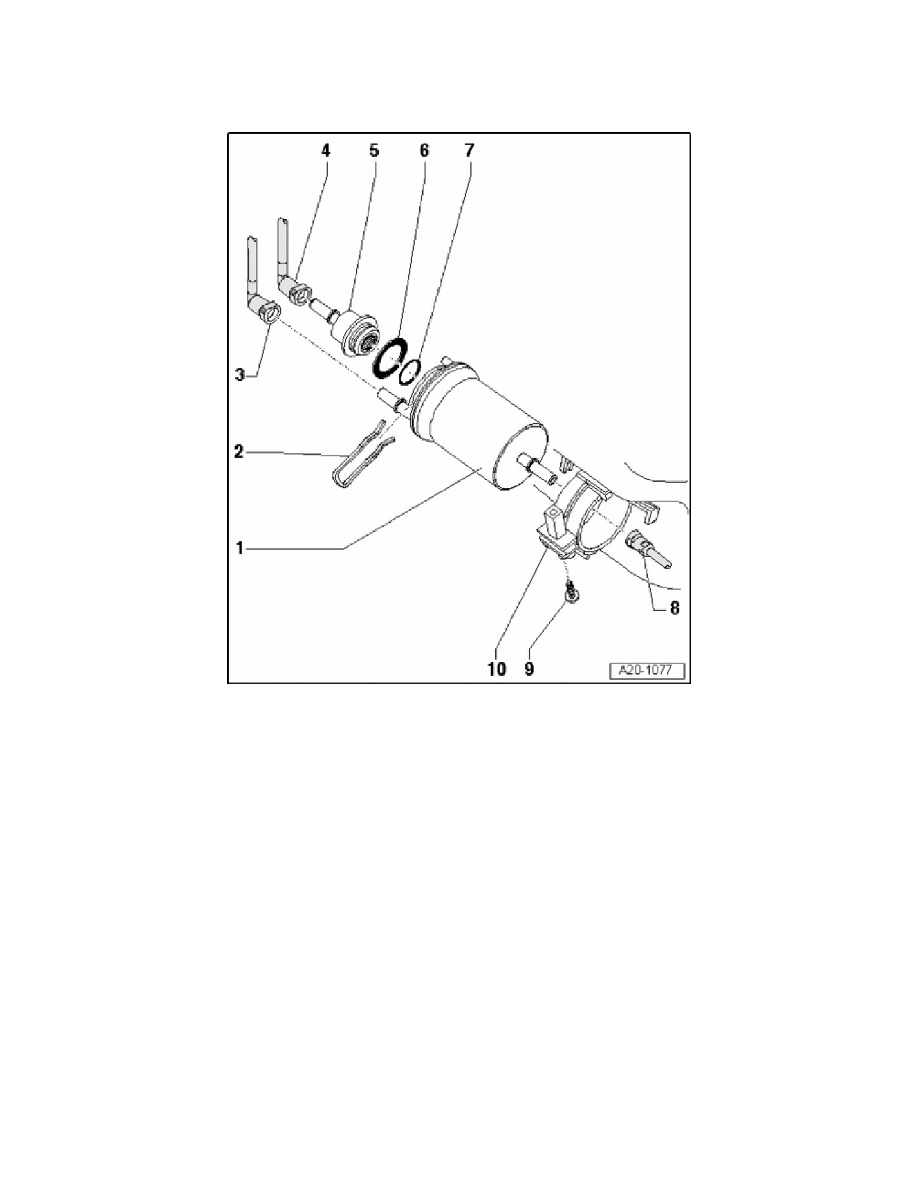

Fuel Filter With Attachments Assembly Overview
Fuel Filter With Attachments Assembly Overview
1
-
Fuel filter
-
New version with integrated fuel presser regulator
-
Direction of flow is marked with arrows
-
Do not interchange connections
-
Installed location: Pin on filter housing must engage in recess of guide on filter bracket
2
-
Retaining clip
-
For fuel pressure regulator
3
-
Fuel supply line
-
Black
-
From fuel tank
-
Press in securing ring to disengage lines.
4
-
Fuel return line Blue
-
To fuel tank
-
Press in securing ring to disengage the lines.
5
-
Fuel pressure regulator
-
New version with integrated fuel filter
6
-
Gasket
-
Replace
7
-
O-ring
-
Replace
8
-
Fuel supply line
-
Black
-
To engine
-
Press in securing ring to disengage the lines.
9
-
3 Nm
10
-
Bracket
