Jetta L5-2.5L (CBTA) (2008)
/Page-80004.png)
-

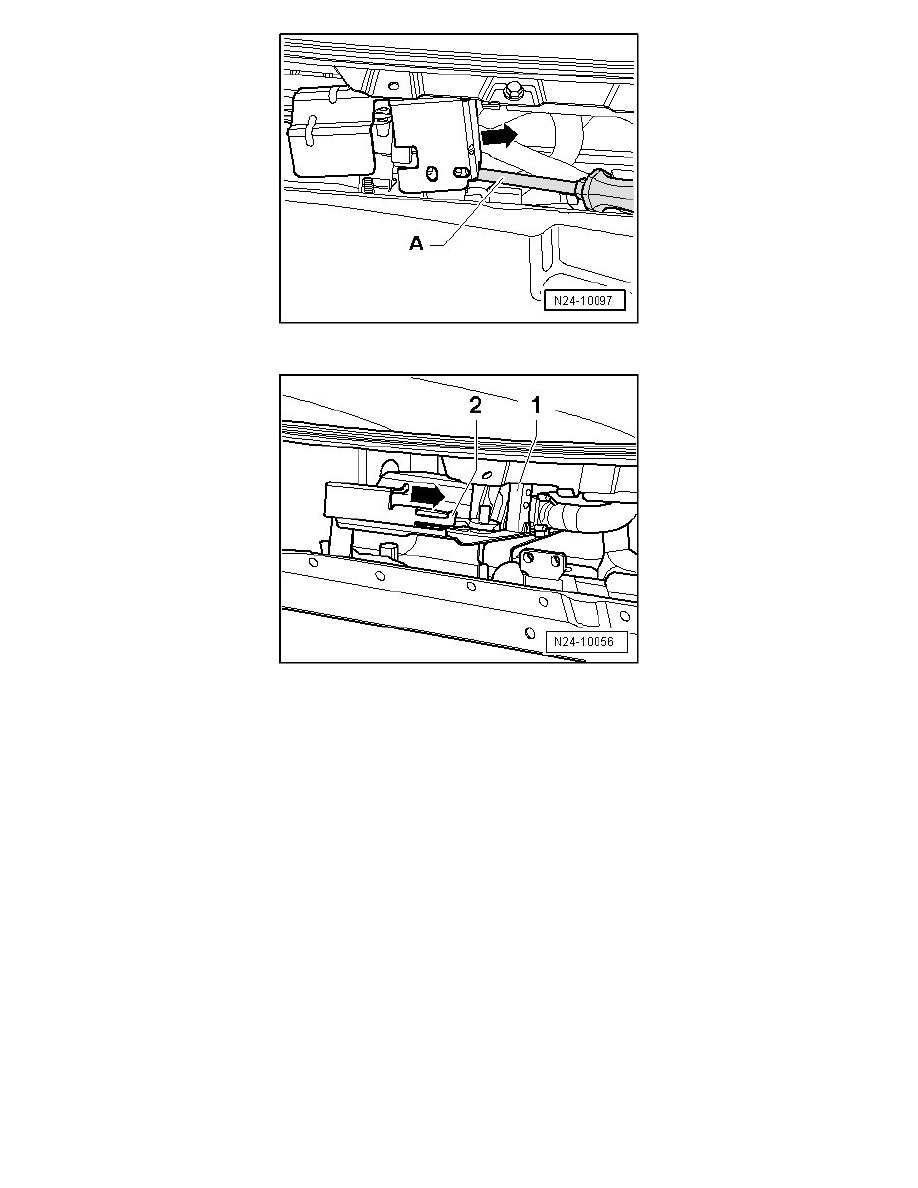

Pry protective housing upward using screwdriver - A - and pull it off sideways from retaining plate - Arrow -
-
Disengage forward harness connector - 1 - from Engine Control Module (ECM) and disconnect it.
-
Pry up locking mechanism - 2 - slightly
-
Then slide Engine Control Module (ECM) out of retainer - Arrow -
-
Now disengage rear harness connector from Engine Control Module (ECM) and disconnect it.
Installation
-
Connect rear harness connector to Engine Control Module (ECM) and engage it.
