Page 5

background image

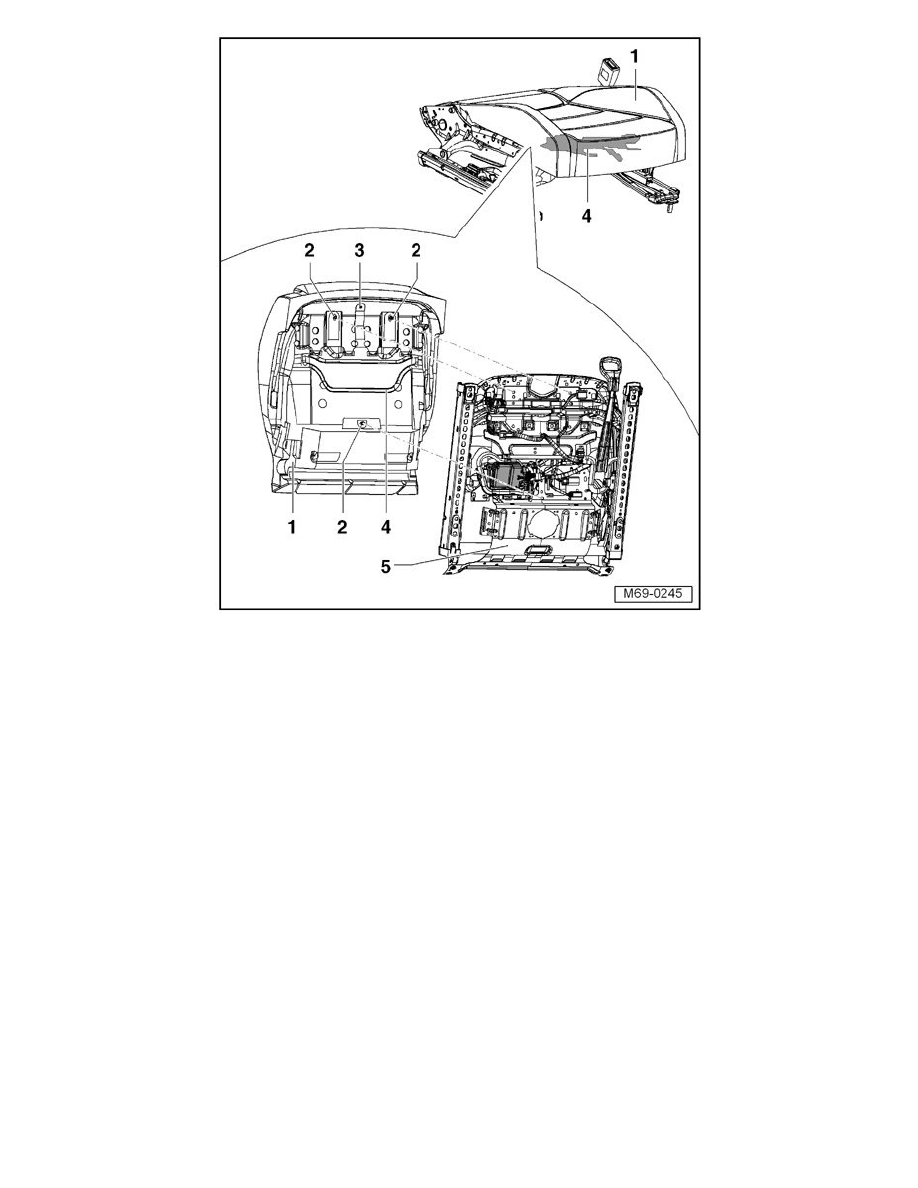

Remove screws - 1 - (2.5 Nm) and remove Seat Occupied Recognition Control Module (J706) bracket.

Restraint Systems
Seat Belt Systems
Seat Sensor/Switch / Component Information
Service and Repair / Seat Occupied Recognition System Assembly Overview
Page 6249
