Jetta L5-2.5L (CBTA) (2008)

Page 1
background image

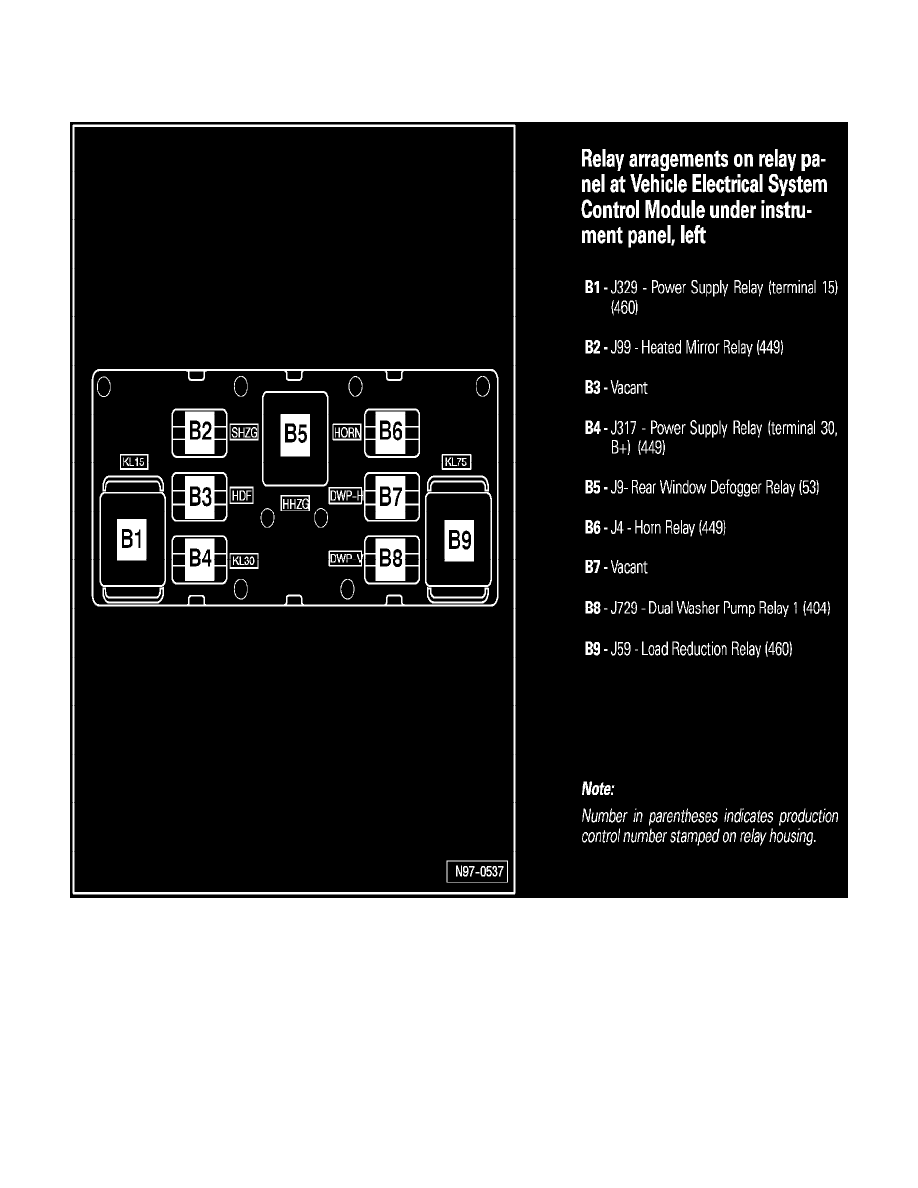

Relay Box: Application and ID
Relay Arrangements on Relay Panel At Vehicle Electrical System Control Module Under Instrument
Panel, Left
