Control Module: Locations
09G Transmission (6 Speed A/T)

09G, 6 Speed A/T

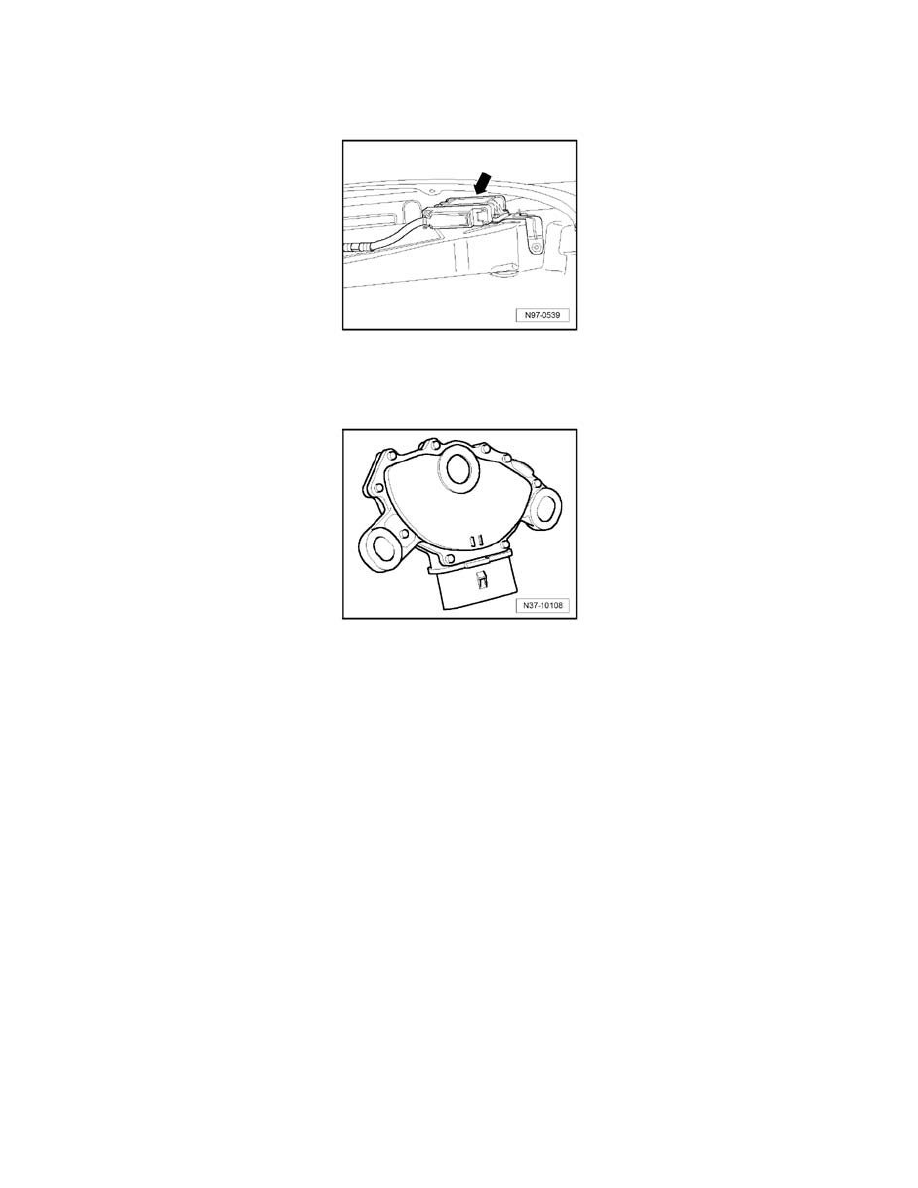

Transmission Control Module (TCM) J217 - arrow -

Location: Control module is located in front left wheel housing.
-

Wheel housing liner must be removed for removing and installing.

Multi-Function Transmission Range (TR) Switch F125

Location: Multi-Function Transmission Range (TR) Switch is located on top of transmission.
