Jetta Sedan L5-25L (BGP) (2005) Powertrain Management: Motronic ECM Power Supply Relay J271

Page 1
background image

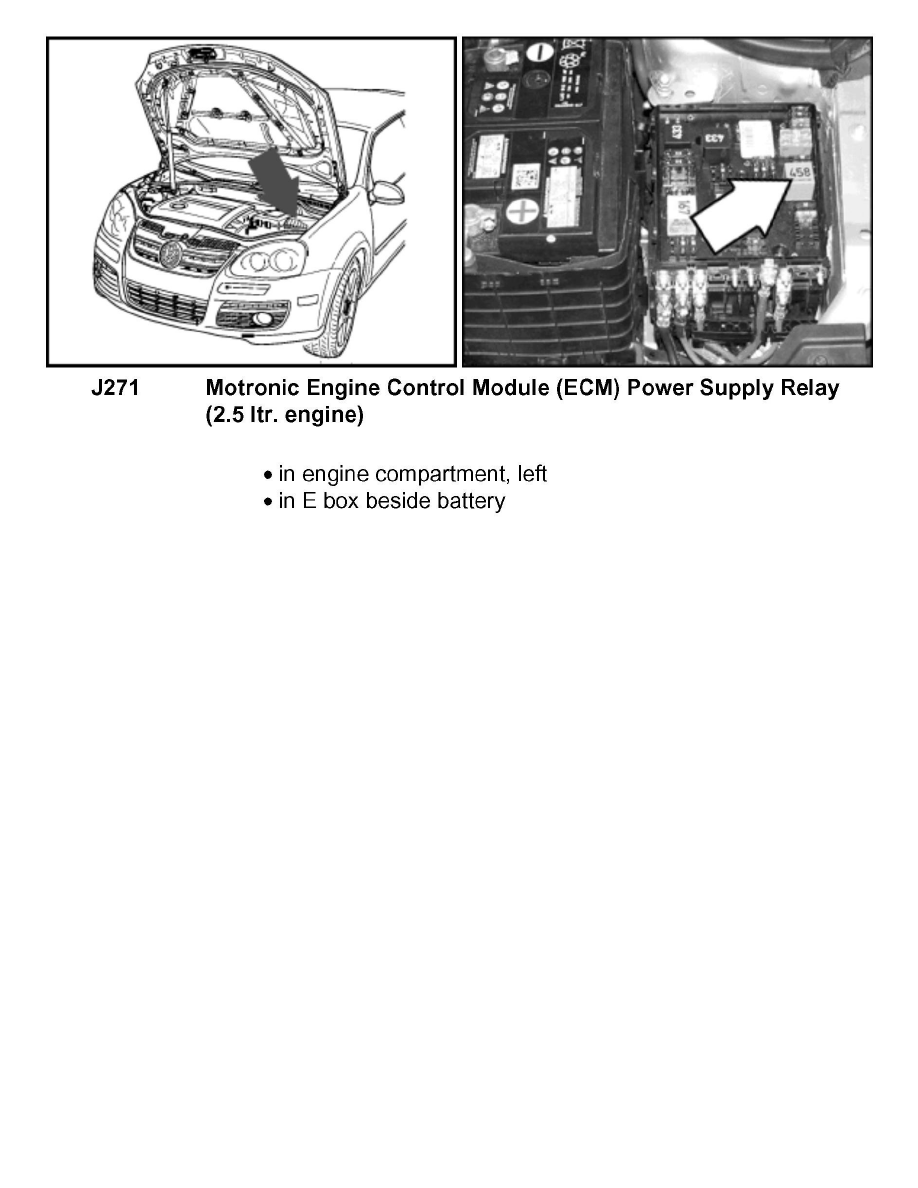

Main Relay (Computer/Fuel System): Locations

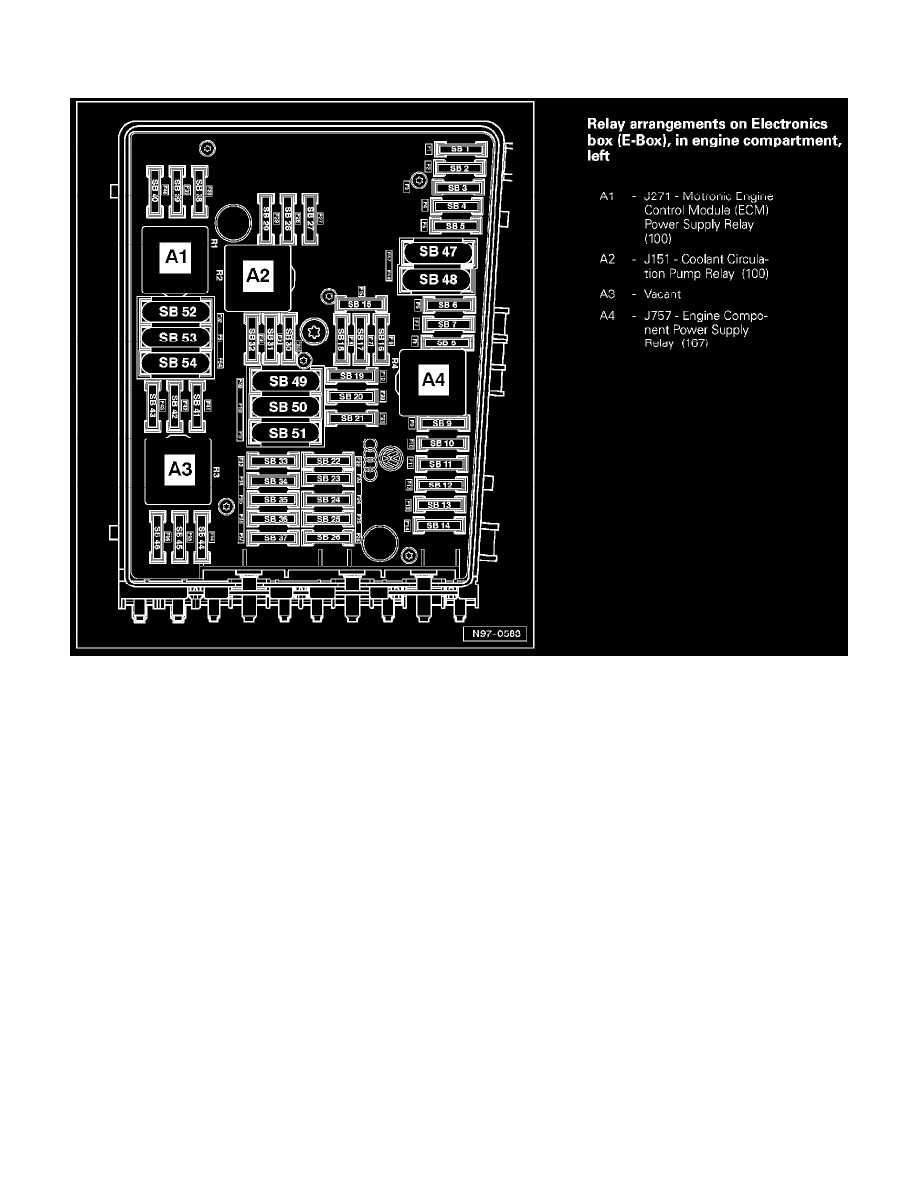

Relay Arrangements on Electronics Box (E-Box), In Engine Compartment, Left

Relay Arrangements On Electronics Box (E-Box), In Engine Compartment, Left
