Jetta Sedan L5-2.5L (BGP) (2005)
Alternator Pulley: Service and Repair
Generator Ribbed Belt Pulley, Removing And Installing
Ribbed Belt Pulley Without Overrunning Clutch, Removing and Installing

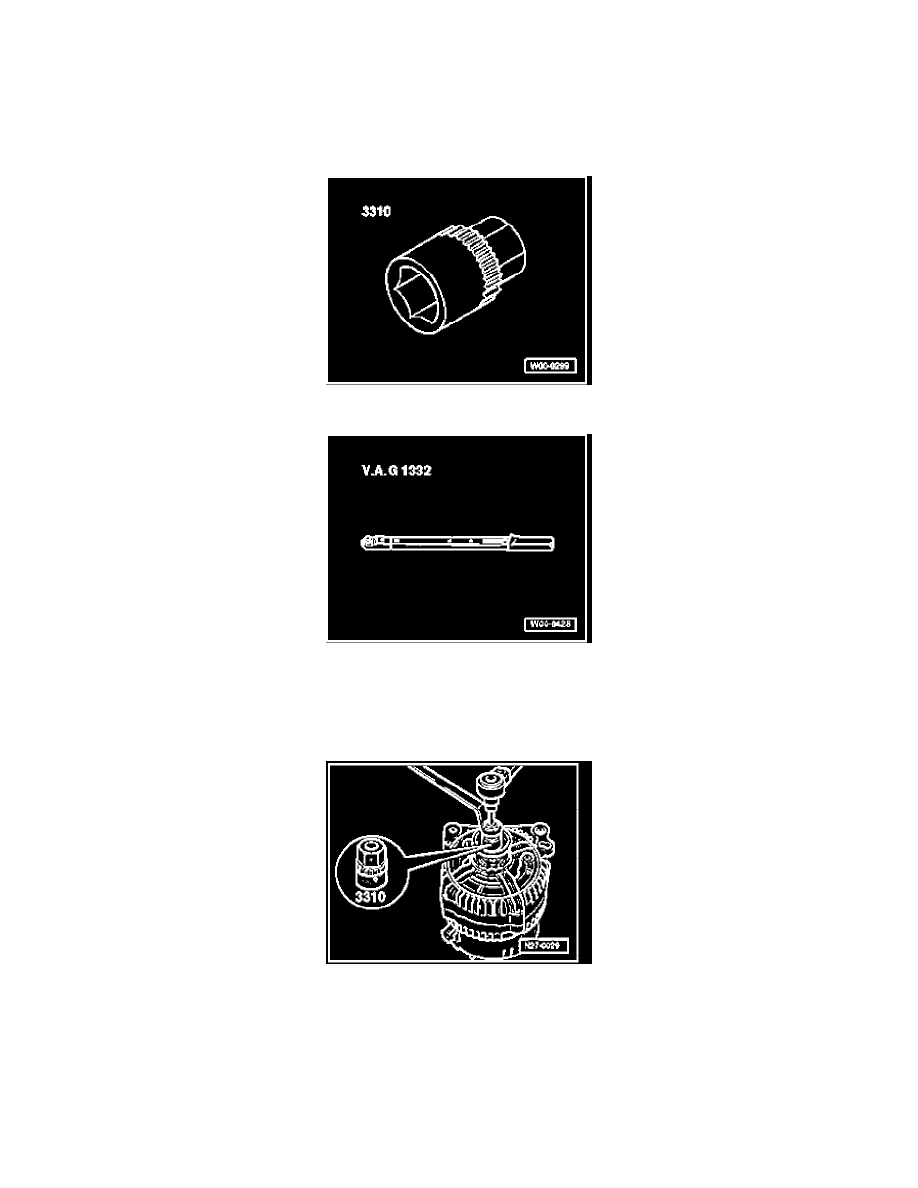

Special tools, testers and auxiliary items required
-
Socket VAS 3310
-
Torque wrench VAG 1332 (or equivalent 40 - 200 Nm)
Removing:
-
Remove generator
-
Clamp generator at mounting points in a vise.
-
Use socket insert VAS 3310 to Remove nut of overrunning clutch pulley from generator shaft.
Installing:
Install in reverse order of removal, noting the following.
-
Tighten all fasteners according to value in table
Ribbed belt pulley with freewheel, removing and installing, manufacturer: Bosch
Special tools, testers and auxiliary items required
