Valve Cover: Service and Repair

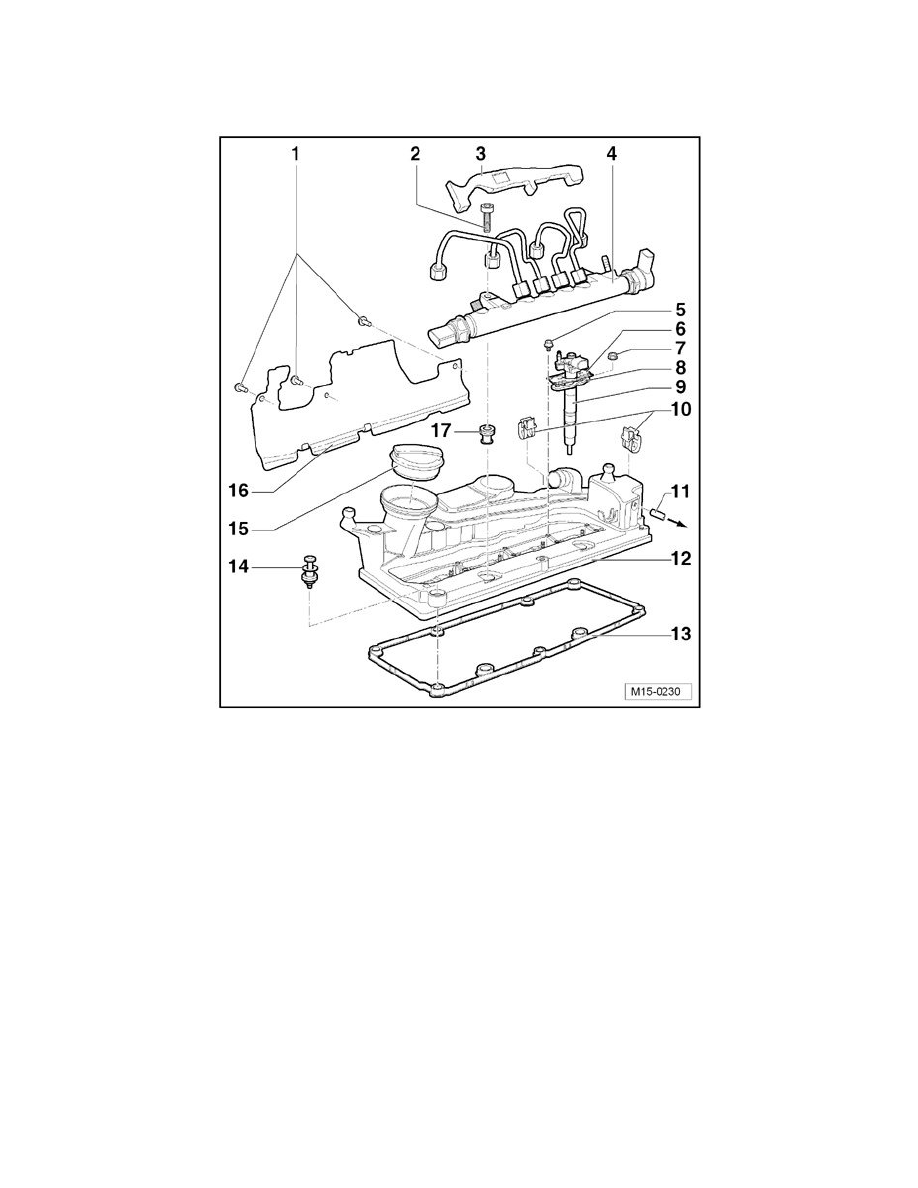

Cylinder Head Cover Assembly Overview
Cylinder Head Cover Assembly Overview
1
5 Nm
2
22 Nm
3
Protective Strip
‹› For rail element (high pressure reservoir) and high pressure lines
4
Rail Element (high Pressure Reservoir)
‹› With high pressure lines
‹› Do not change the angles of the high pressure lines
‹› Refer to --> [ Fuel System Assembly Overview ] See: Powertrain Management/Fuel Delivery and Air Induction/Service and Repair/Removal
and Replacement.
5
5 Nm
6
Injection Unit Cover
7
10 Nm
8
Tensioning Bracket
