Jetta SportWagen (AJ5) L4-2.0L DSL Turbo (CJAA) (2011)
/l4-2.0l_dsl_turbo_(cjaa)/Page-112002.png)
Tip:
Roof mounted antenna that contain satellite radio or satellite radio / GPS functionality are referred to as "shark fin" antennas compared to a standard roof
mount antenna base & mast.

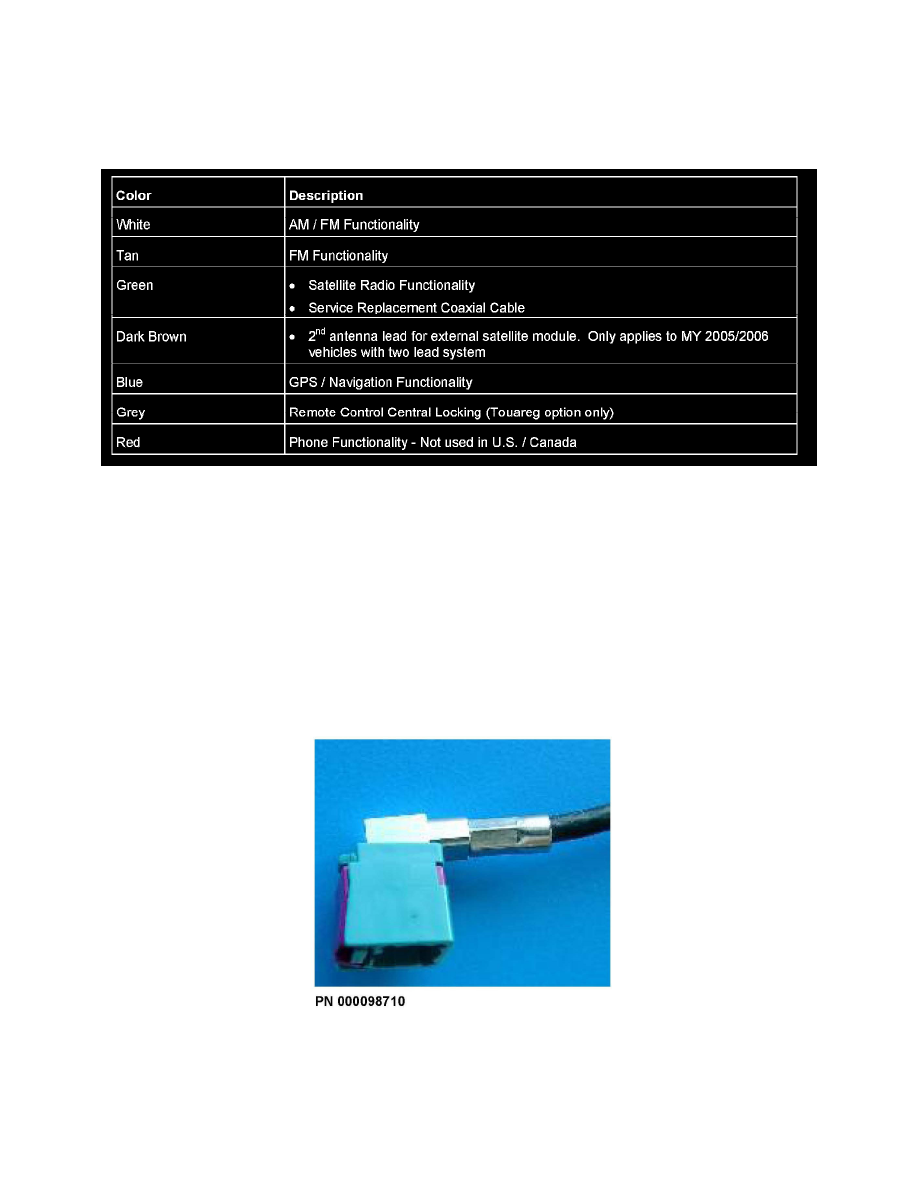

Antenna Connector Colors
The connectors of antenna cables are color coded for easy reference.
Tip:
Antenna module coaxile cable connectors may not use standard color coding.
Coaxial Cable Information
^
Service replacement coaxial cables are universally keyed, meaning you can use them on any type of antenna connector MY 2005.5 and newer (except
NB/NBC).
Tip:
Certain models will need a 90 degree adapter to clear the back of the dash.
^
Use PN 000098710 when GPS, Satellite or single lead antenna system coaxial cable is being replaced.
