Installing
Installing
Installing
–

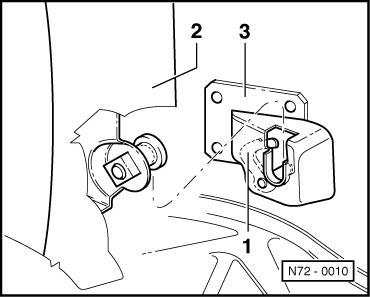

Fit backrest
-2-
into backrest mounting
-3-
and press downwards. (Locking lugs
-1-
will lock when doing this).
–

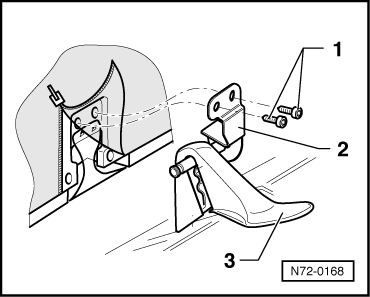

Fit retaining support
-2-
onto centre mounting
-3-
.
–
Screw screws
-1-
into back of backrest. Specified torque: 20 Nm
