Installing > < Models with mobile telephone holder

New Beetle

Continued for all vehicles
Continued for all vehicles

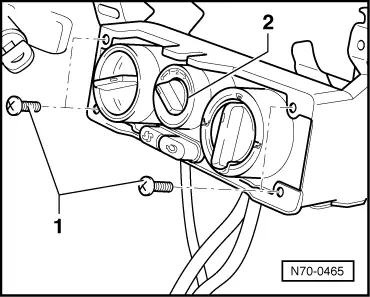

–  Remove the 4 bolts -1-.
–  Push the regulators for heating and ventilation -2- under the dash panel, with their cables attached.
–  Remove the 2 bolts and remove dash panel housing -3-.
  N70-0465

–  Remove trim -6-.
–  Unscrew bolts on underside (Qty. 2), on upper side (Qty. 4) and left side (Qty. 1) of left upper dash panel trim -2-. Remove upper part of dash panel -2- from base unit -5-.
–  Unscrew bolts on underside (Qty. 4), on upper side (Qty. 4) and right side (Qty. 1) of right upper dash panel trim -4-. Remove upper part of dash panel -4- from base unit -5-.
–  Remove bolts -5-, M8 bolt -6- and remove frame -7-.


–  Remove bolts -3-, -4- and -8-.
–  Remove bolts for fuse holder on dash panel.
–  Pull dash panel base unit -1- off cross member -2- and take out of vehicle.
