New Beetle
| Removing and installing C-pillar trim |
| Removing |
| – | Remove anchorage points for rear seat belt relays → Front passenger airbag, seat belts; Rep. gr.69 and → Front passenger airbag, seat belts; Rep. gr.69. |

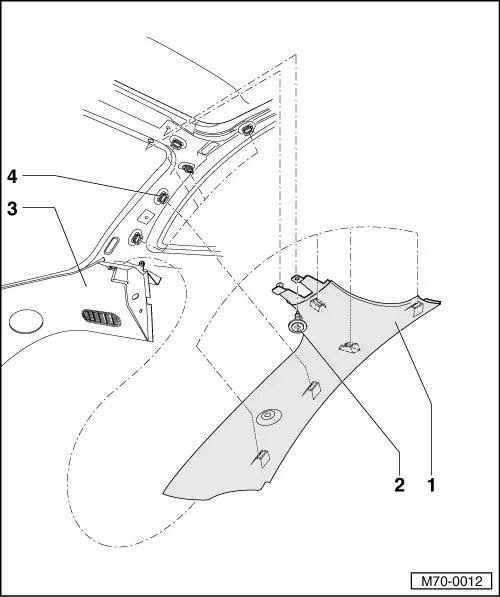

| – | Pull end strip (clipped) downwards off roof frame. |
| – | Remove bolt -2-. |
| – | Starting at top, pull trim -1- off C-pillar and unhook from luggage compartment trim -3-. |
| Installing |
| Installation is carried out in the reverse order. |
Note| Check clips -4- before installing trim and renew if necessary. |
