volkswagen Workshop Repair Guides


New Beetle L4-2.0L (AZG) (2003)

Sensors and Switches > Sensors and Switches - Body and Frame > Convertible Top Switch > Component Information > Technical Service Bulletins > All Technical Service Bulletins for Convertible Top Switch: > VG-US > Jun > 04 > Campaign - Convertible Top Button/Window Clamp Bolt > Page 393

Page 18
background image

-

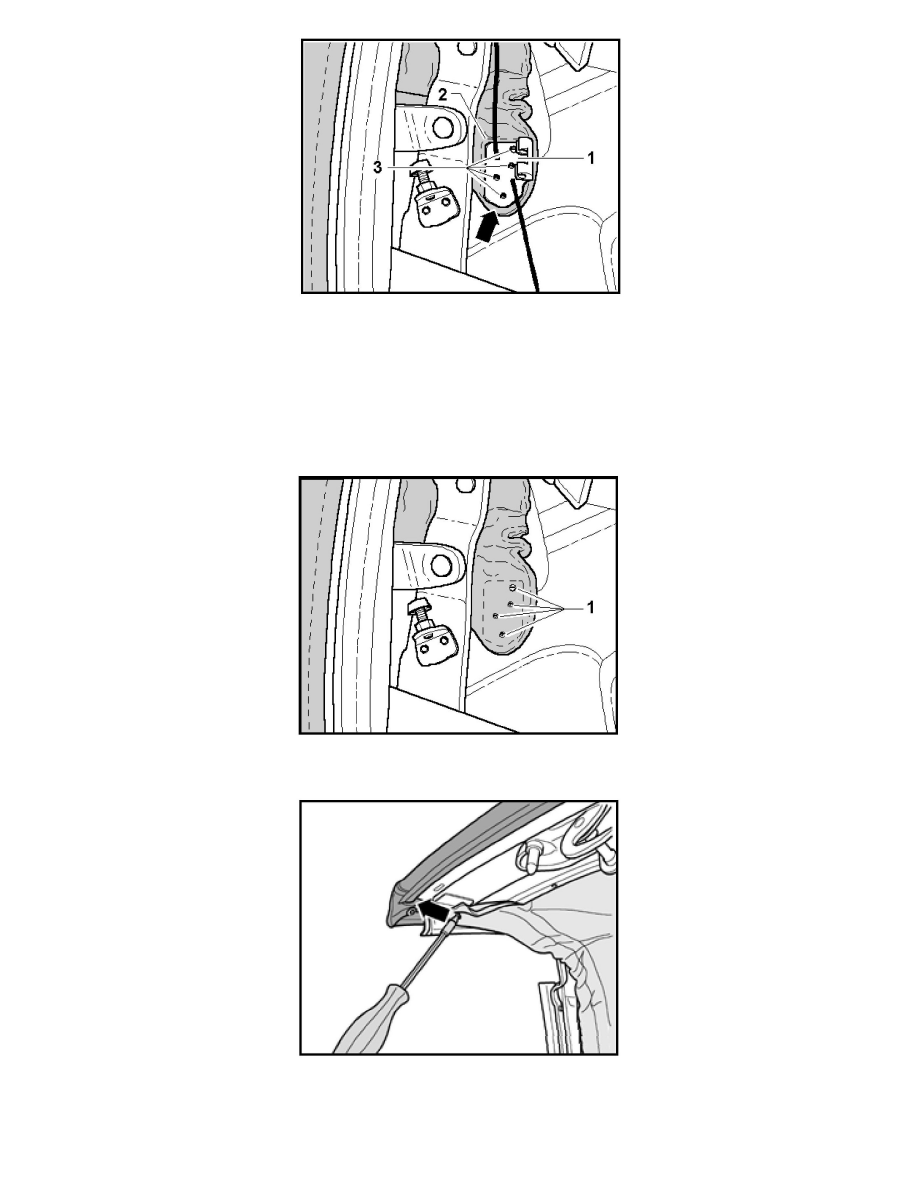

Remove slider -1- from retaining plate -2- (inside headlining) by starting at bottom -arrow- and prying away from clips -3-

NOTE:
-

Retaining plate inside headlining is attached to an elastic cable that is under tension

-

Illustration shows an upper cable attached to the slider

-

Some vehicles may have an elastic strap and no cable

-

Remove slider with cable(s) or elastic strap from vehicle

-

Push retaining plate clips -1- into the headlining to allow retaining plate to be removed

-

On convertible top, remove screw securing elastic cable eyelet

CAUTION:
-

ELASTIC CABLE MAY BE UNDER TENSION
