Power Window Switch: Customer Interest
Body - Convertible Top Inoperative

Group: 61

Number: 03-02

Date: Apr. 15, 2003

Subject:
Convertible Top, Inoperative after Power Has Been Interrupted

Model(s):
New Beetle Convertible

2003

Condition

-

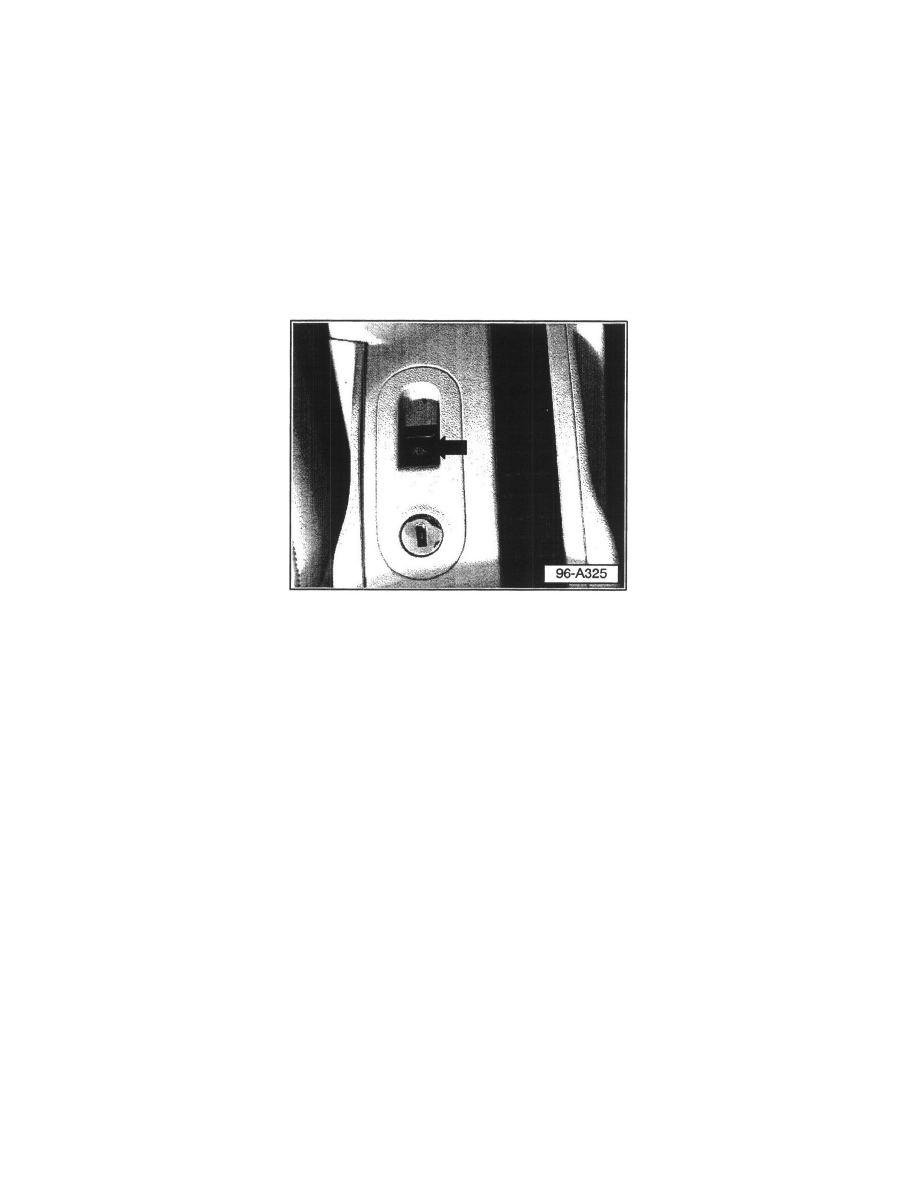

After power has been interrupted to the Convertible Top Control Module -J256- (includes battery disconnect) the Convertible Top Operation Switch
-E137- (arrow) located in the center console may be deactivated.

It may be necessary to reset the power window pinch protection in order to restore top operation.

Service

To reactivate the Convertible Top Operation switch after power has been restored, use one of the following methods:

-

Switch ignition ON.
