New Beetle L5-2.5L (BPS) (2006)
Tire Pressure Module: Service and Repair
Control Modules
=> [ Tire Pressure Monitoring Control Module ]
=> [ Comfort System Central Control Module ]
Tire Pressure Monitoring Control Module
‹› Additional information:
Vehicles owner's manual
DTC recognition and display
The Tire Pressure Monitoring Control Module (J502 ) is equipped with OBD.
Use Guided Fault Finding.
The Tire Pressure Monitoring Control Module (J502 ) is located behind the glove compartment on the left side. It is mounted to tunnel on the front
passenger side.
CAUTION!
‹› Turn off the ignition and all electrical components.
‹› Remove the key.
Removing

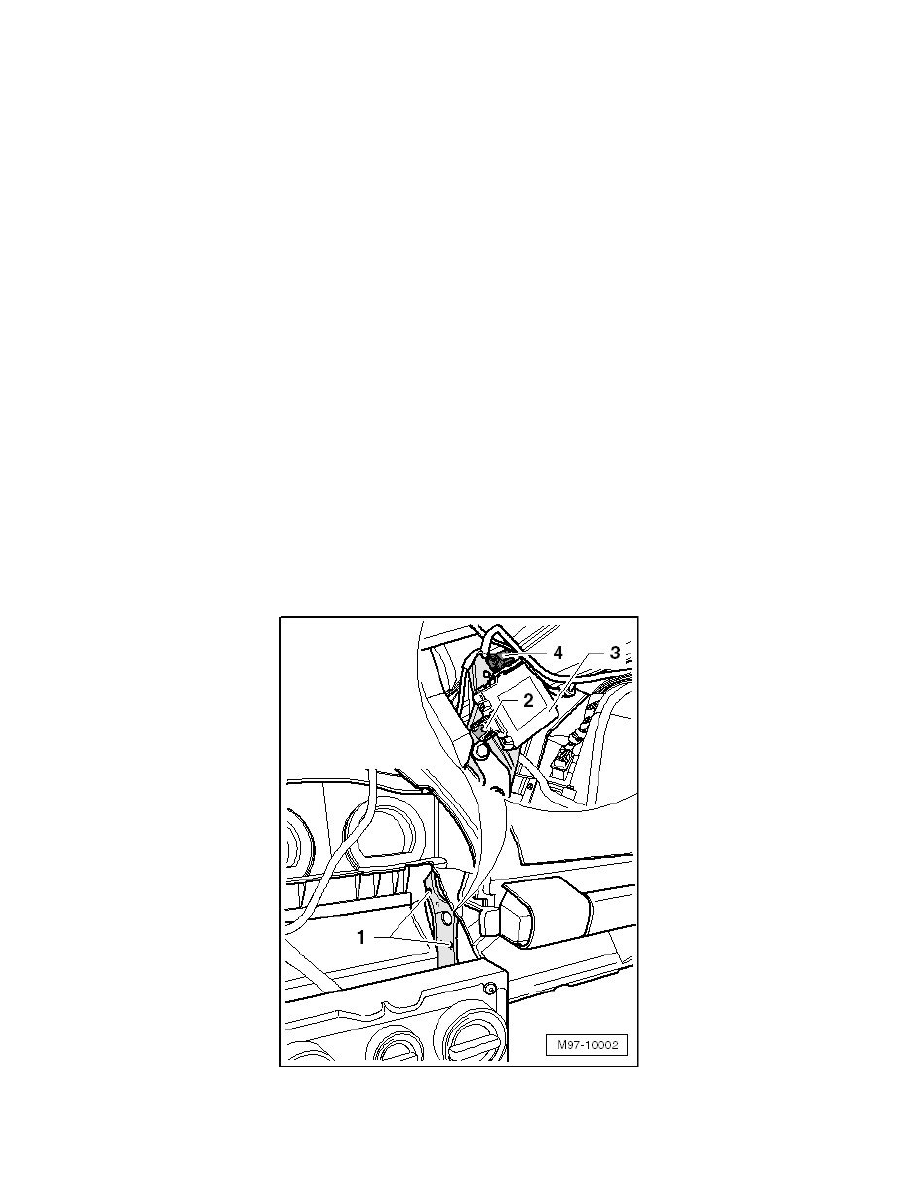

The Tire Pressure Monitoring Control Module (J502 ) - 3 - is attached to the tunnel by two screws - 1 -. The spring nuts - 2 - are installed on the Tire
Pressure Monitoring Control Module (J502) - 3 -. The screws - 1 - are accessible above the center air vent and the Tire Pressure Monitoring Control
Module ( J502) - 3 - is above the glove compartment.
-
Remove the center air vent.
-
Remove the switch mount.
