Passat 4Motion V6-2.8L (ATQ) (2005)

  • Steering and Suspension
  • Relays and Modules - Steering and Suspension
  • Relays and Modules - Steering
  • Steering Mounted Controls Communication Module
  • Component Information
  • Locations
  • Relay Arrangement on Thirteenfold Auxiliary Relay Panel Above Relay Panel

Page 1
background image

Steering Mounted Controls Communication Module: Locations

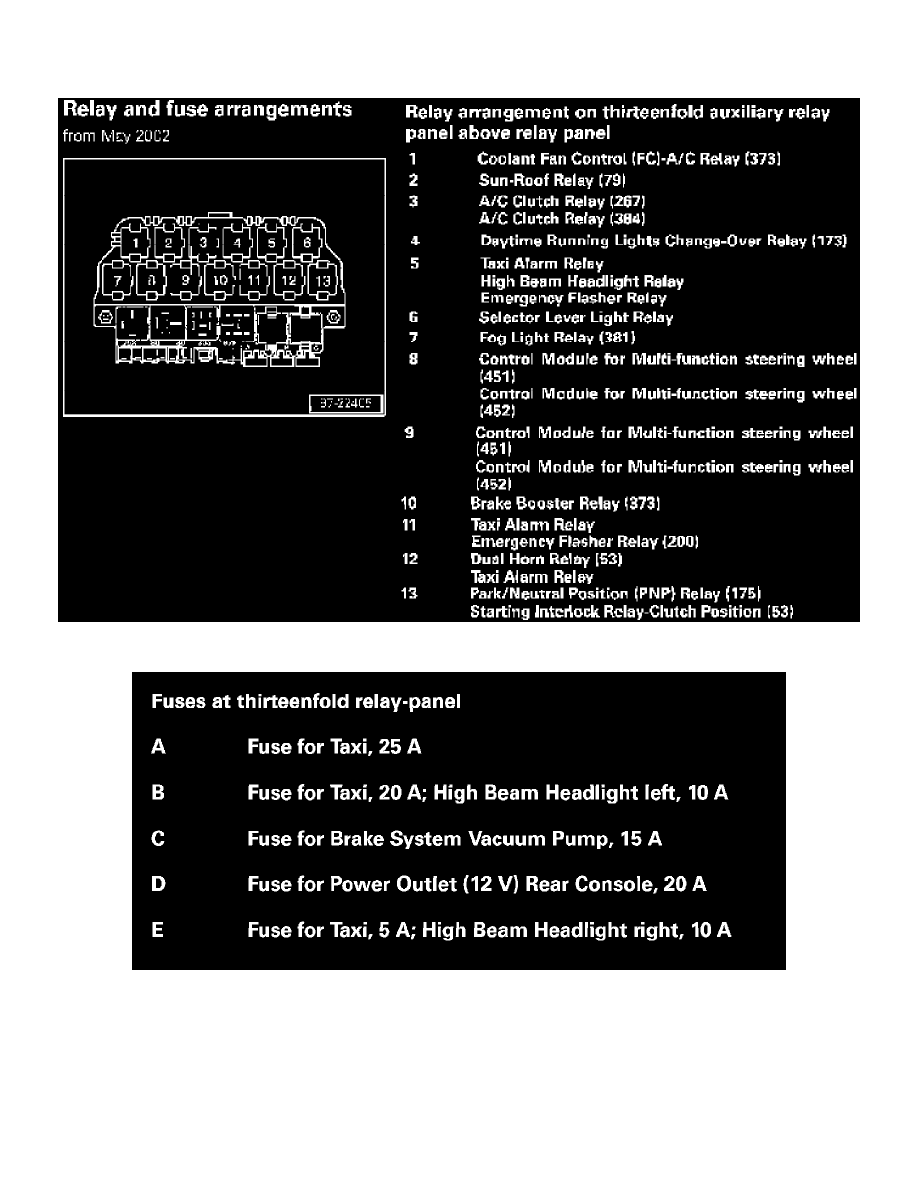

Relay Arrangement on Thirteenfold Auxiliary Relay Panel Above Relay Panel

Relay Arrangement on Thirteenfold Auxiliary Relay Panel Above Relay Panel

Relay Arrangement on Thirteenfold Auxiliary Relay Panel Above Relay Panel
