Passat 4Motion V6-2.8L (ATQ) (2005)

Page 1
background image

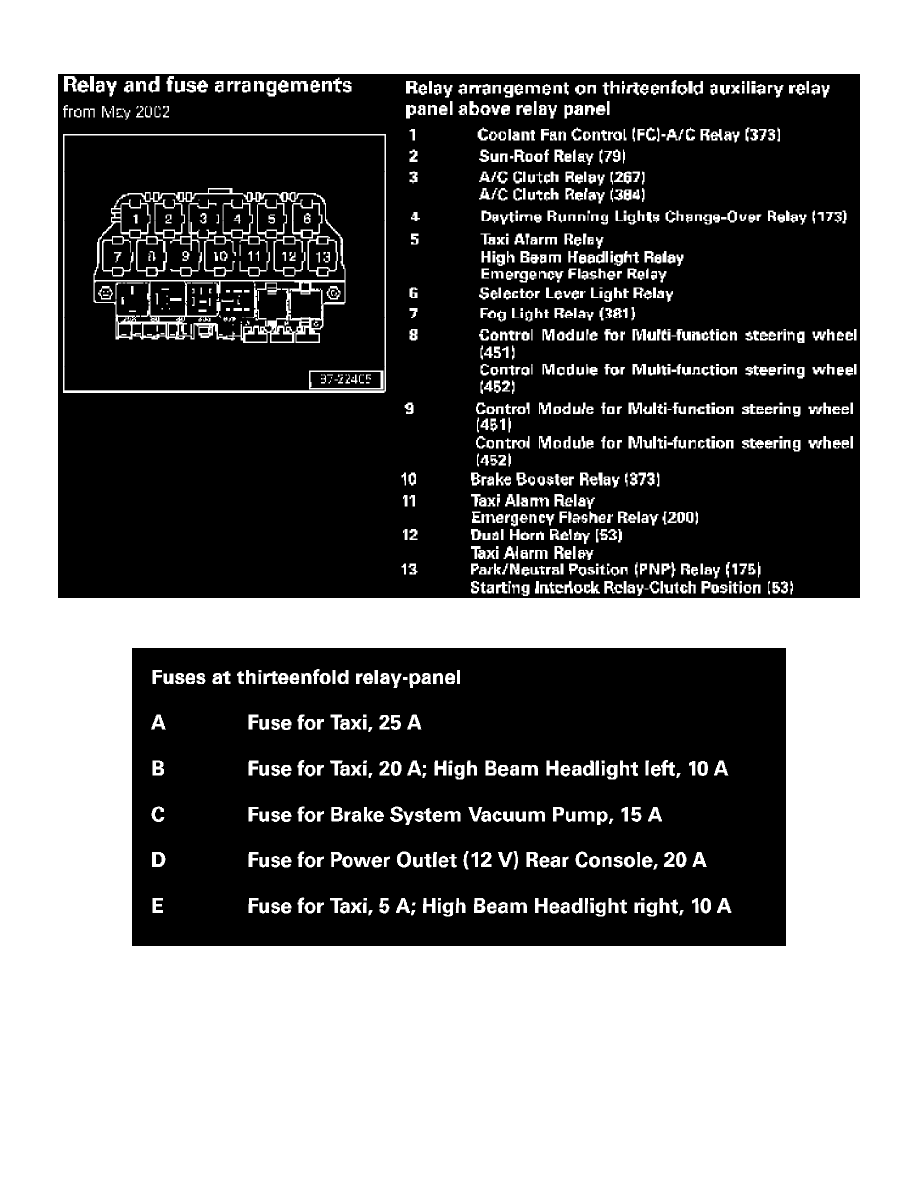

Transmission Position Relay: Locations

Relay Arrangement on Thirteenfold Auxiliary Relay Panel Above Relay Panel

Relay Arrangement on Thirteenfold Auxiliary Relay Panel Above Relay Panel
