Accelerator Pedal: Service and Repair
Accelerator Mechanism, Servicing

Engine code AEB only

1

-

Throttle cable mounting
-

On bulkhead in plenum chamber

-

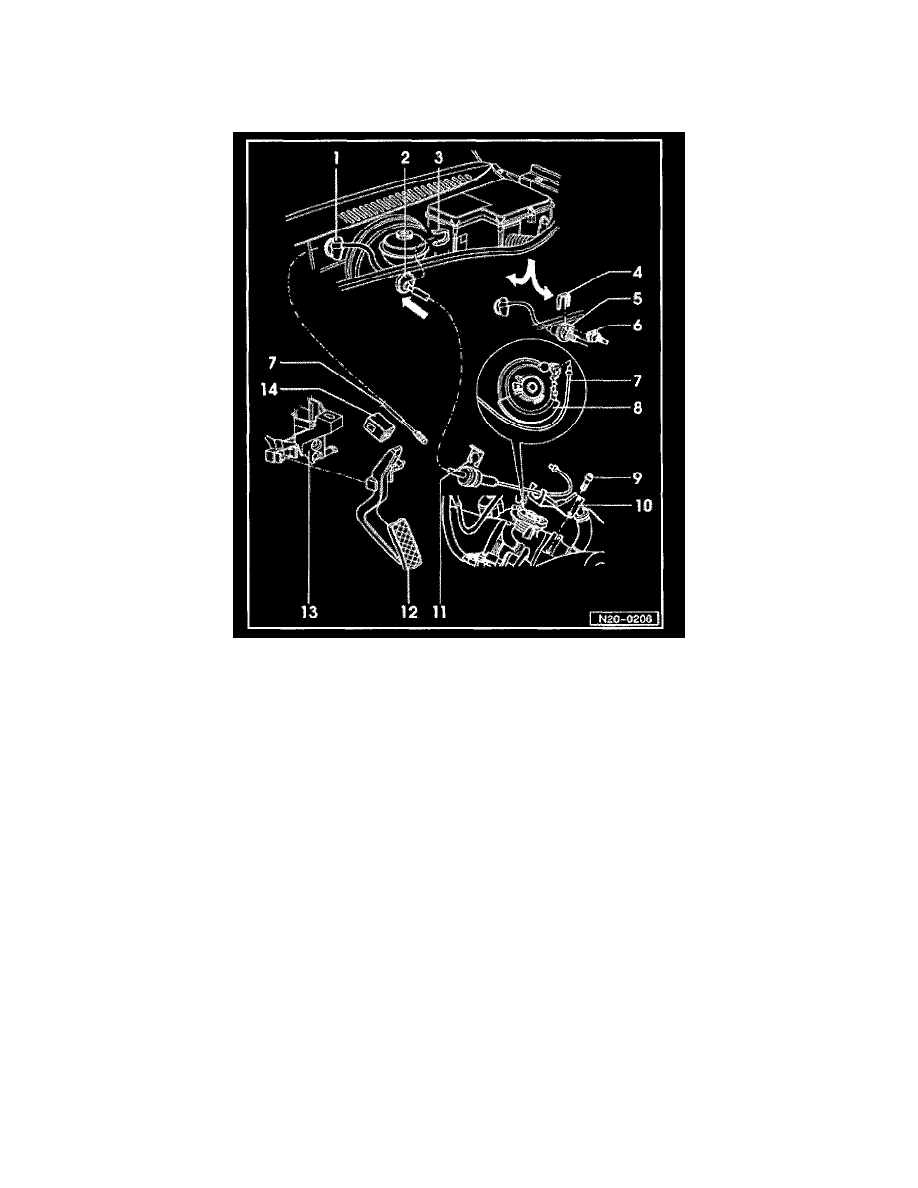

Removing and installing See Fig. 1.

2

-

Throttle cable mounting
-

On bulkhead

-

Only vehicles with manual transmission

3

-

Retaining clip
-

Only vehicles with manual transmission

-

Ensure seated securely

-

Secured behind bulkhead

4

-

Retaining clip
-

Only vehicles with automatic transmission

-

Ensure seated securely

-

Secured before bulkhead

5

-

Kickdown switch -F8-
-

On bulkhead

-

Checking, Adjusting throttle cable on vehicles with automatic transmission. See: Throttle Cable/Linkage/Adjustments

6

-

Connector
-

Black, 2-pin

7

-

Accelerator cable
-

 Adjusting. See: Throttle Cable/Linkage/Adjustments

-

Do not reuse damaged accelerator cable, replace

8

-

Cable cam
-

On throttle valve control part

9

-

10 Nm

10

-

Support bracket
-

For accelerator cable

11

-

Retainer

12

-

Accelerator pedal
