Passat Wagon V6-2792cc 2.8L DOHC (1994)
Brake Caliper: Technical Service Bulletins
Brake Caliper, Rear - Revised
Group: 46
Number: 93-05
Date: April 30, 1993
Subject:
Rear brake caliper, revised
Model(s):
Passat from m.y. 1993
Beginning 10/92, a revised rear brake caliper was installed in production.

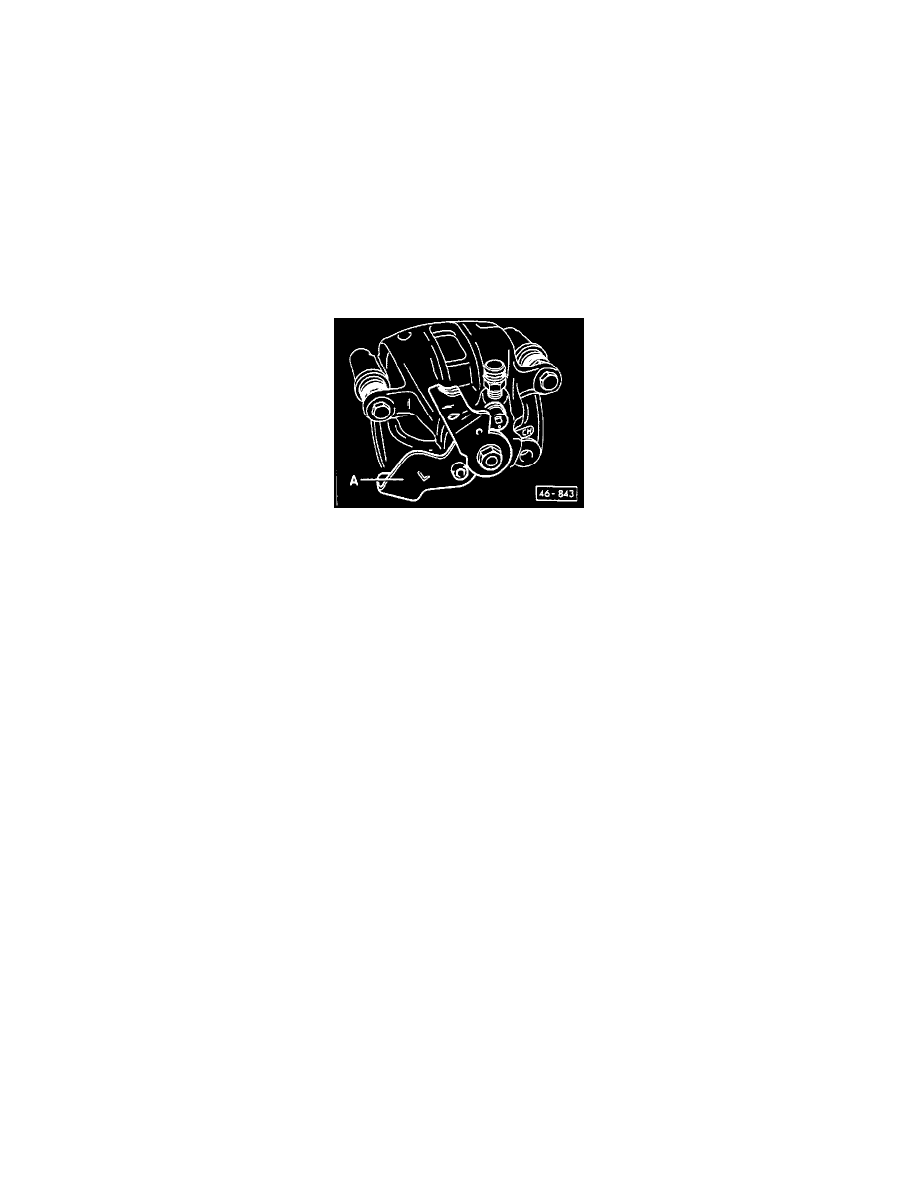

Rear Brake Caliper
An outer characteristic of the revised brake caliper is the bolted-on bracket -A- for retaining the parking brake cable. Previously, the retaining point was
cast as part of the caliper housing.
The new caliper improves the hydraulic/mechanical efficiency of the rear brake assembly.
CAUTION
^
DO NOT install both versions of rear caliper on the same vehicle.
^
DO NOT install new version caliper into vehicles built before 10/92.
The procedures for brake pad replacement and repair of the brake caliper remain unchanged and valid as described in Repair Groups 46 and 47.
