Repairing front brake caliper, VW I and VW II brake caliper
Repairing front brake caliper, VW I and VW II brake caliper
t  Install complete repair kit when servicing.
t  Only use methylated spirits to clean brakes.
t  Apply thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.

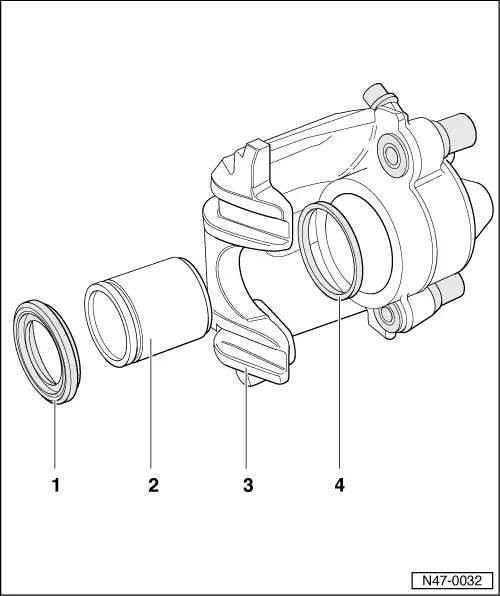

1 - Protective cap
q   Do not damage when inserting piston
2 - Piston
q   Removing and installing → Chapter
q   Apply thin coat of assembly paste G 052 150 A2 to piston before inserting
3 - Brake caliper
4 - Seal
q   Removing and installing → Chapter
