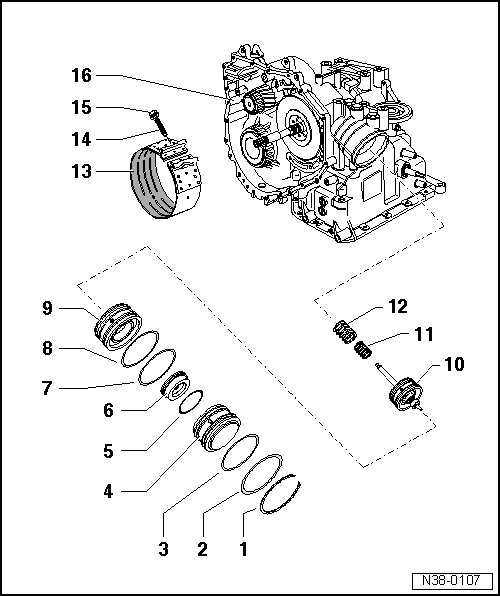

• Circlip
• ◆ Removing and installing =>Fig.1
• O-ring
• ◆ Always renew
• O-ring
• ◆ Always renew
• Cover
• ◆ Pull out of gearbox housing after removing circlip
• O-ring
• ◆ Always renew

• 4th gear operating piston
• ◆ Differs depending upon type of engine
• ◆ Spare part is allocated according to gearbox code letters
• O-ring
• ◆ Always renew
• O-ring
• ◆ Always renew
• Piston cap
• ◆ For 2nd gear operating piston
• ◆ Differs depending upon type of engine
• ◆ Spare part is allocated according to gearbox code letters
• 2nd gear operating piston
• ◆ Differs depending upon type of engine
• ◆ Spare part is allocated according to gearbox code letters

• Spring
• Spring
• Brake band -B2-
• ◆ Store in installation position => Fig.2
• Shim
• ◆ For brake band -B2-
• Nut, 45 Nm
• Gearbox housing

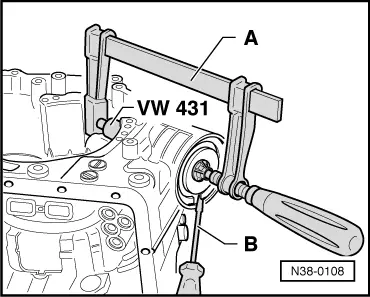

→ Fig.1     Removing and installing circlip

• ‒ Place thrust piece VW 431 over the cylinder for the -B2- brake operating piston.
• ‒ Depress cap slightly with a screw-type clamp -A-.
• ‒ Lever circlip out with a screwdriver -B-.

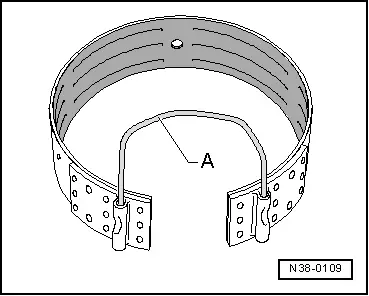

→ Fig.2     Storing brake band -B2-

• ‒ After removing brake band, secure against opening out with e.g. a locally manufactured wire hoop -A-.
