Removing and installing engine

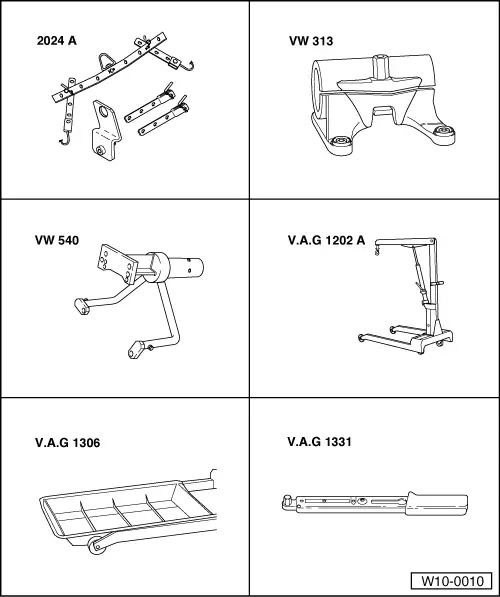

Special tools and workshop equipment required

t	Lifting tackle -2024 A-

t	Support clamp -VW 313-

t	Engine and gearbox support -VW 540-

t	Workshop hoist -V.A.G 1202 A- or workshop hoist -VAS 6100-

t	Drip tray -V.A.G 1306- or drip tray for workshop hoist -VAS 6208-

t	Torque wrench -V.A.G 1331-

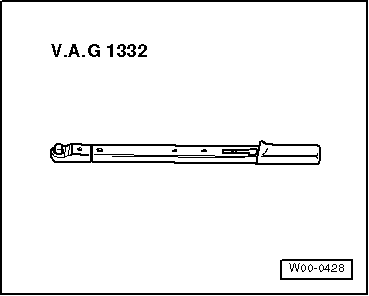

t	Torque wrench -V.A.G 1332-

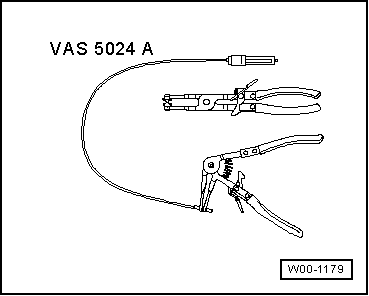

t	Spring-type clip pliers -VAS 5024A-

Not illustrated:

t	Grease -G 000 100- (vehicles with manual gearbox)

t	Cable ties
