Running gear self-diagnosis for ABS

Electrical check of ABS/EDL/TCS/ESP ITT Mark 20 IE

Test prerequisites

● Switch ignition and electrical consumers off before commencing the check (headlights, lighting, fan ...).
● Fuses SB8, SB11, S 178 and S179 must be OK (remove fuses from fuse holder to check).

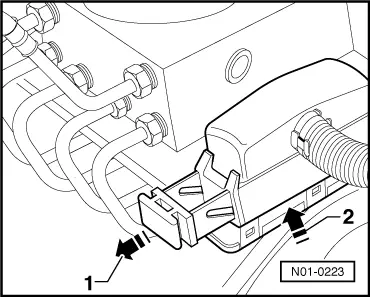

‒ → Release control unit -J104- connector -arrow 1- and pull off -arrow 2-.

‒ → Connect test box V.A.G 1598/33 -1- to multi-pin connector of control unit -J104- -2-.

The specified values are matched to the V.A.G 1526 and are not necessarily applicable for other test units.
